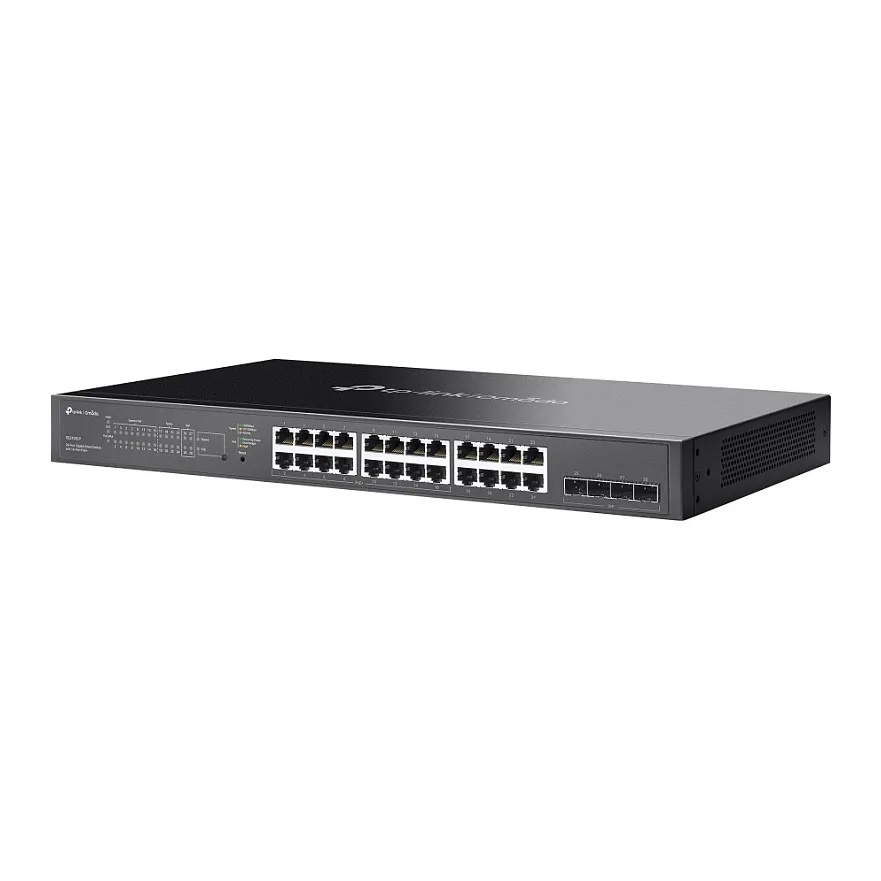

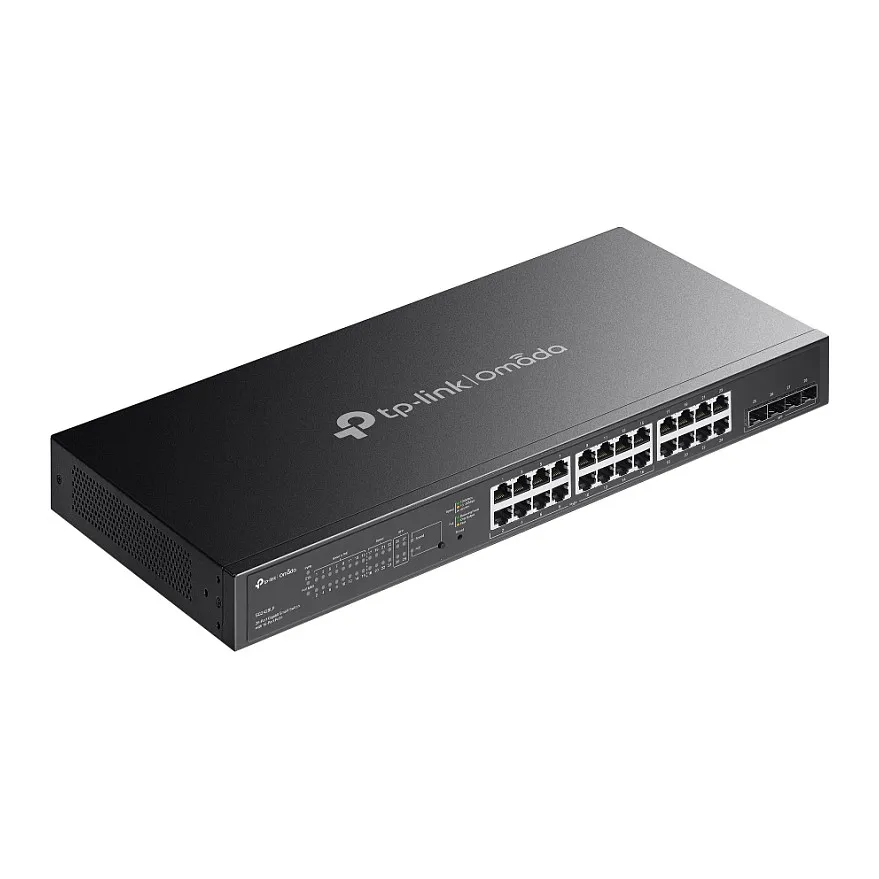

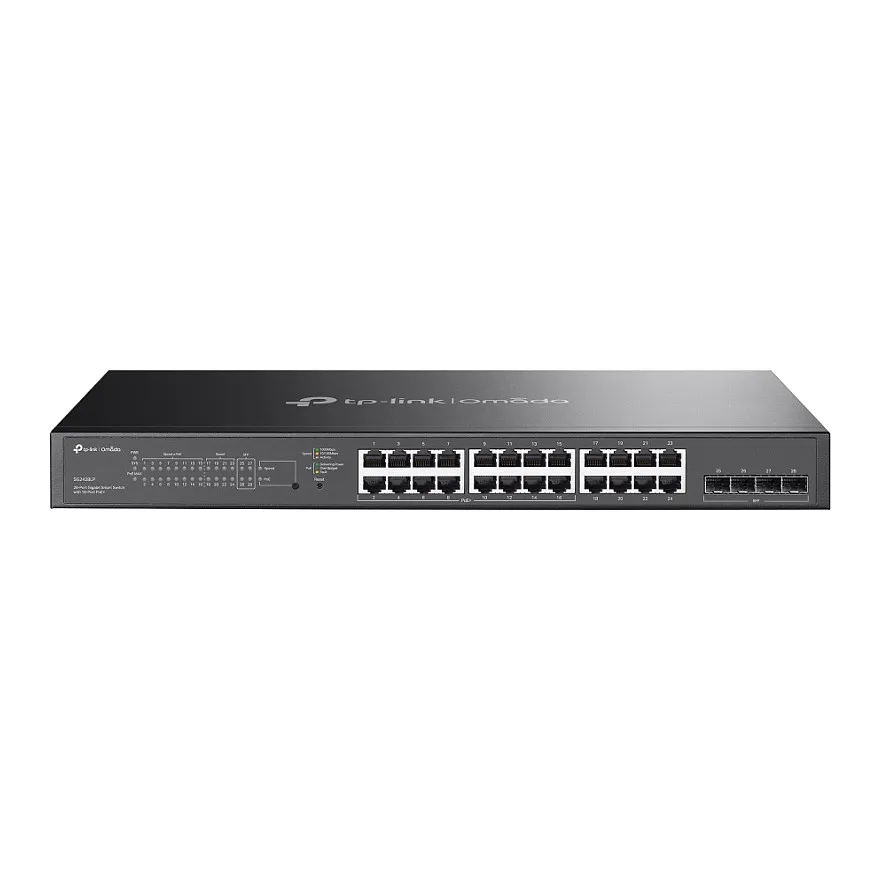

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
– 150 W Total PoE Budget
– Fanless Design for Silent Operation
– Zero-Touch Provisioning
– Centralized Management
– Omada App
– Static Routing
– Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Switch type: Managed
Switch layer: L2/L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
ARP inspection: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4
Network
Networking standards: IEEE 802.3af, IEEE 802.3at
10G support: No
Flow control support: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Auto-negotiation: Yes
VLAN support: Yes
Virtual LAN features: MAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4000
Data transmission
Switching capacity: 56 Gbit/s
Forwarding rate: 41.66 Mpps
MAC address table: 8000 entries
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 4.1 MB
Security
DHCP features: DHCP relay, DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
Password protection: Yes
Multicast features
Multicast support: Yes
Design
Rack mounting: Yes
Product colour: Grey
LED indicators: Yes
Performance
Fanless: Yes
Power
Power source: AC/PoE
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 184.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 16
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 150 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Heat dissipation: 628 BTU/h
Weight & dimensions
Width: 440 mm
Depth: 220 mm
Height: 44 mm
