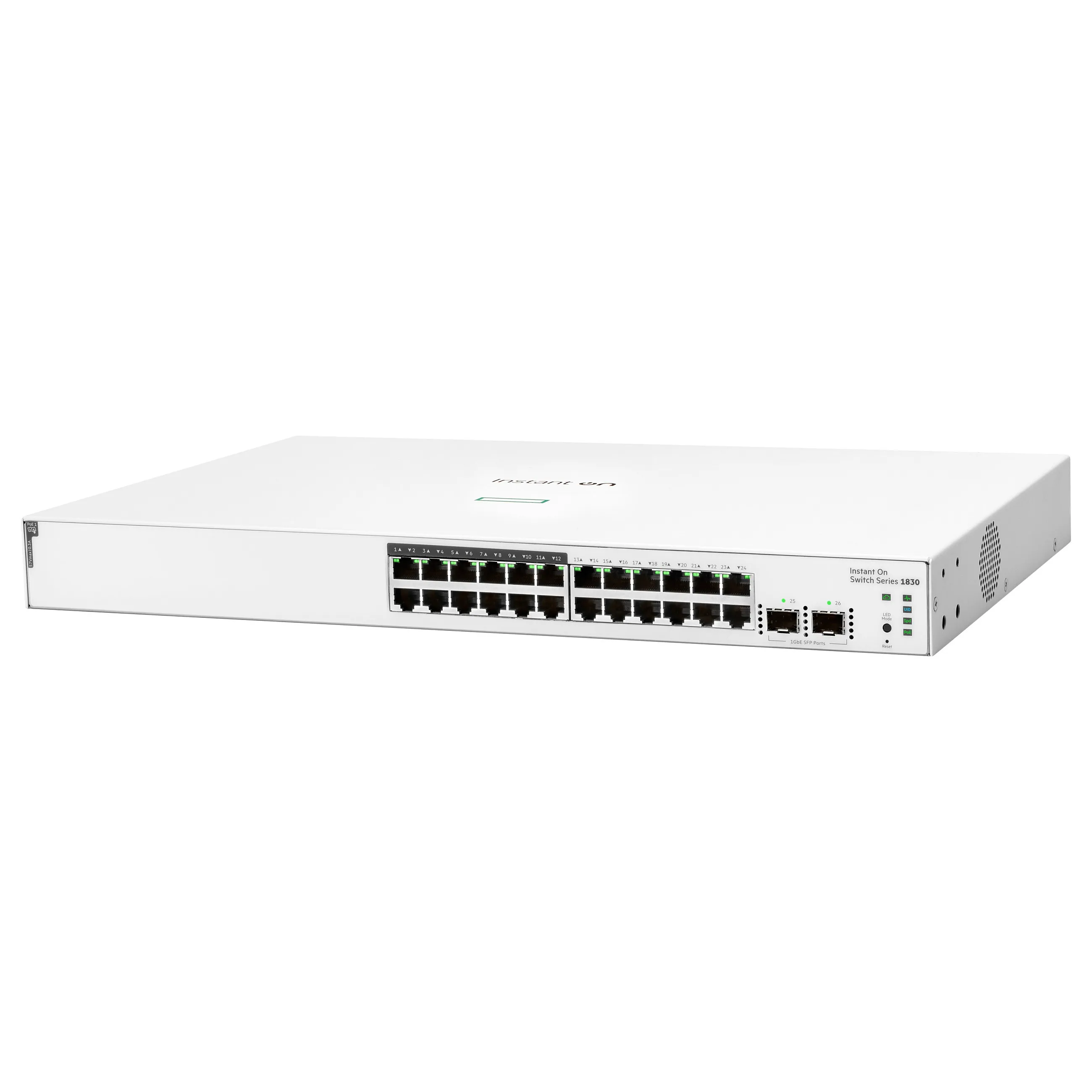

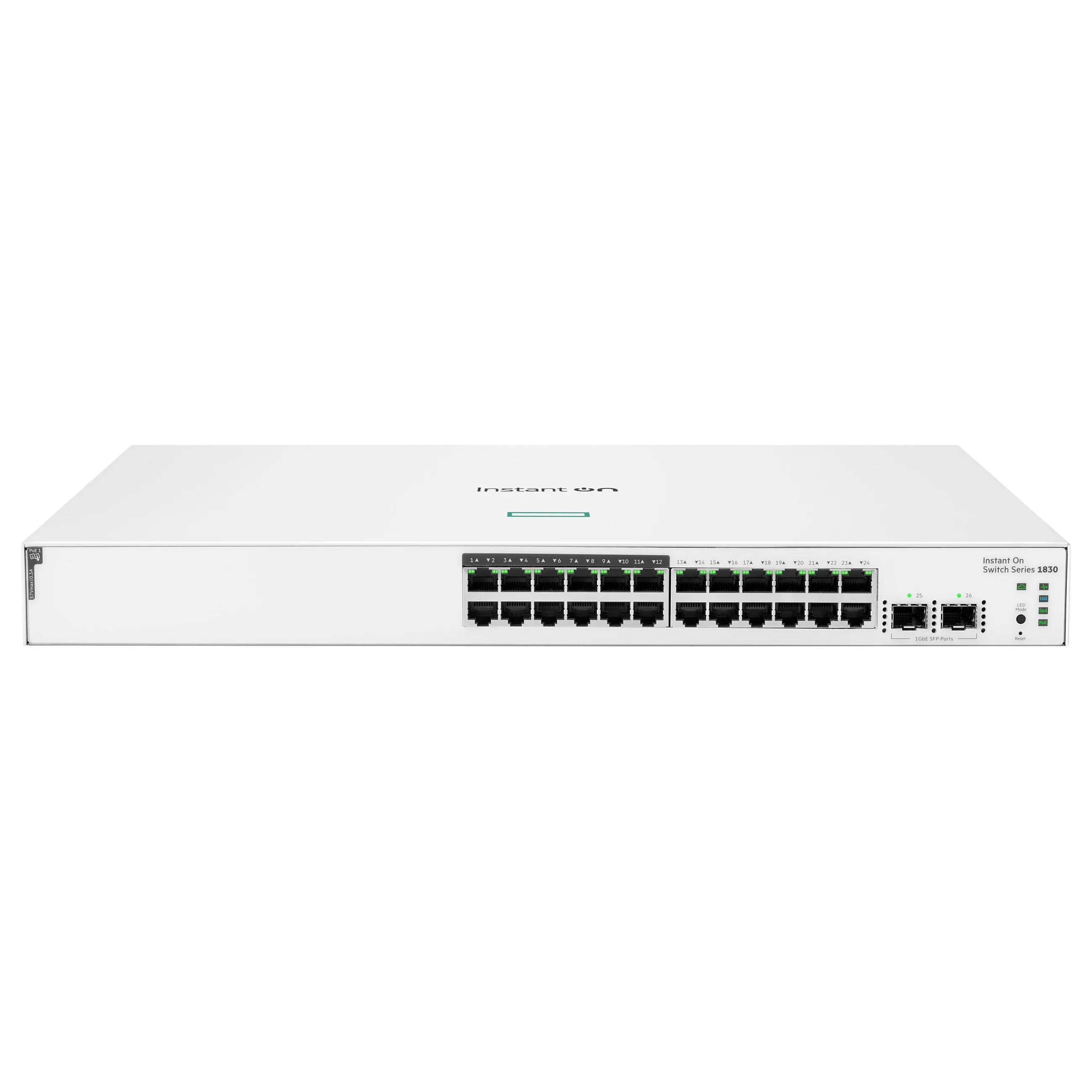

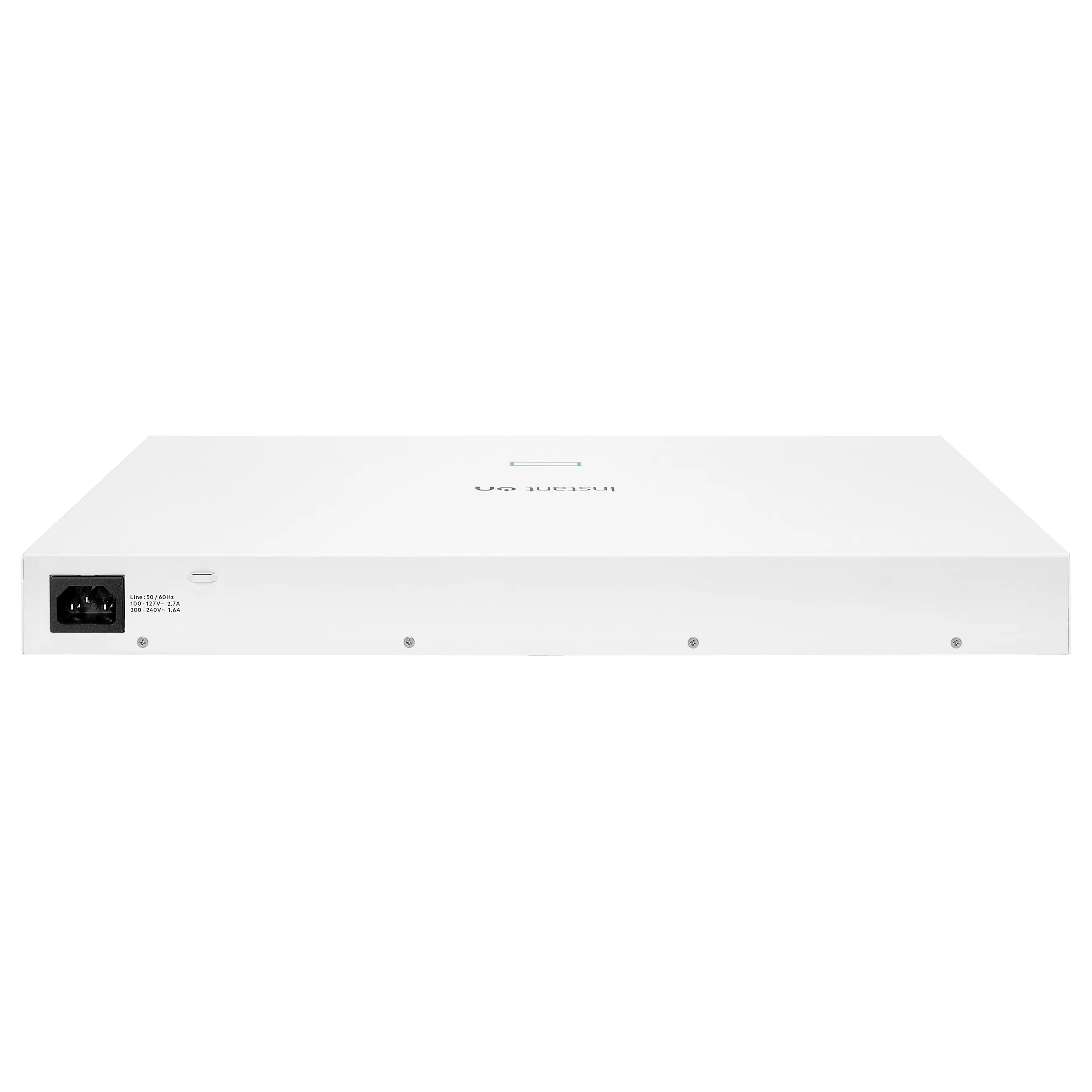

HPE Aruba Networking Networking Instant On Switch 24p Gigabit CL4 PoE 2p SFP 195W 1830. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
What is new supporting point:
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Option to manage your switches through local web GUI.
Two and four dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
Cost-effective PoE support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.
Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
System event log: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Network
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: No
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Auto-sensing: Yes
VLAN support: Yes
Data transmission
Switching capacity: 52 Gbit/s
Throughput: 38.68 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 5.2 µs
Latency (1 Gbps): 2.8 µs
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP client
IGMP snooping: Yes
SSH/SSL support: Yes
Design
Rack mounting: Yes
Form factor: 1U
Performance
Built-in processor: Yes
Processor model: ARM Cortex-A9
Processor frequency: 800 MHz
Memory type: RDRAM
Internal memory: 512 MB
Flash memory: 256 MB
Power
Power source: AC
Power supply included: Yes
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption note: Maximum: 100-127V: 244.6W 200-220V: 237.2W; Idle: 100-127V: 14.5W 200-220V: 13.4W
Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 195 W
Other features
Memory and processor: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
I/O ports: 24 RJ-45 10/100/1000 Class 4 PoE ports, 2 SFP 1GbE ports
Performance management: HPE Networking Instant On Cloud; Web browser; SNMP Manager
Weight (imperial): 3.47 kg (7.65 lbs)
Dimensions (W x D x H) (imperial): 253 x 443 x 43.9 mm (9.96 x 17.4 x 1.73″)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 15 – 95%
Storage relative humidity (H-H): 15 – 95%
Weight & dimensions
Width: 253 mm
Depth: 443 mm
Height: 43.9 mm
Weight: 3.47 kg
Logistics data
Harmonized System (HS) code: 85176990
