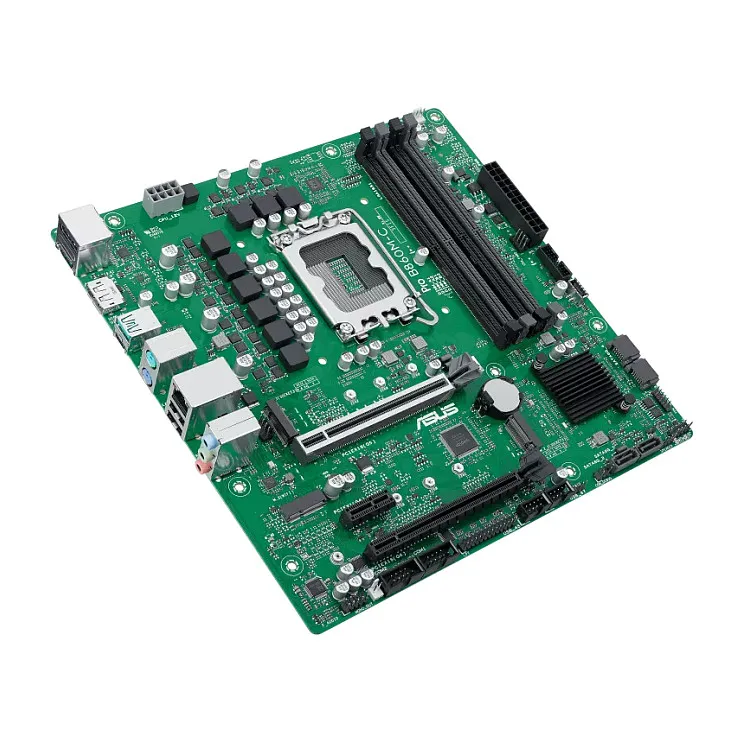

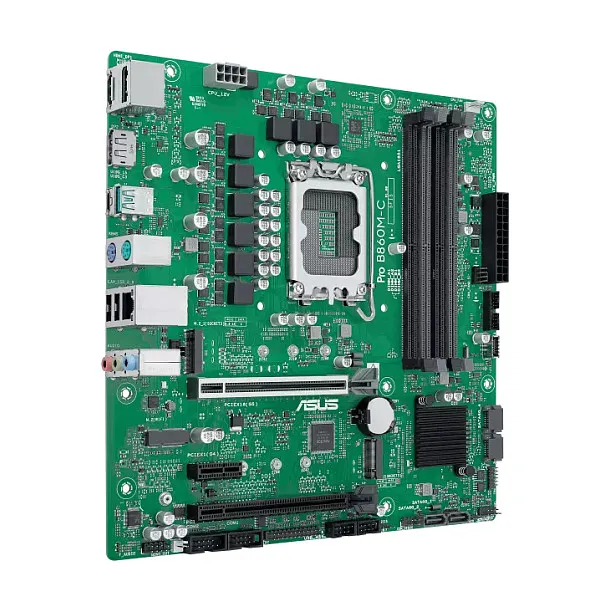

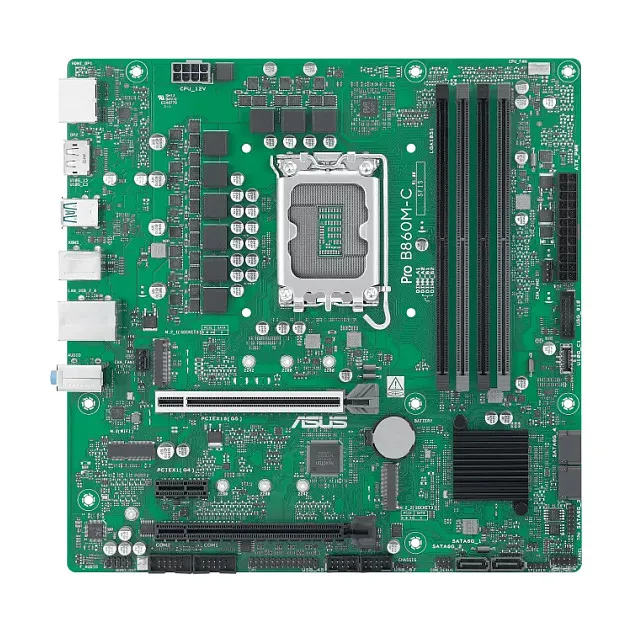

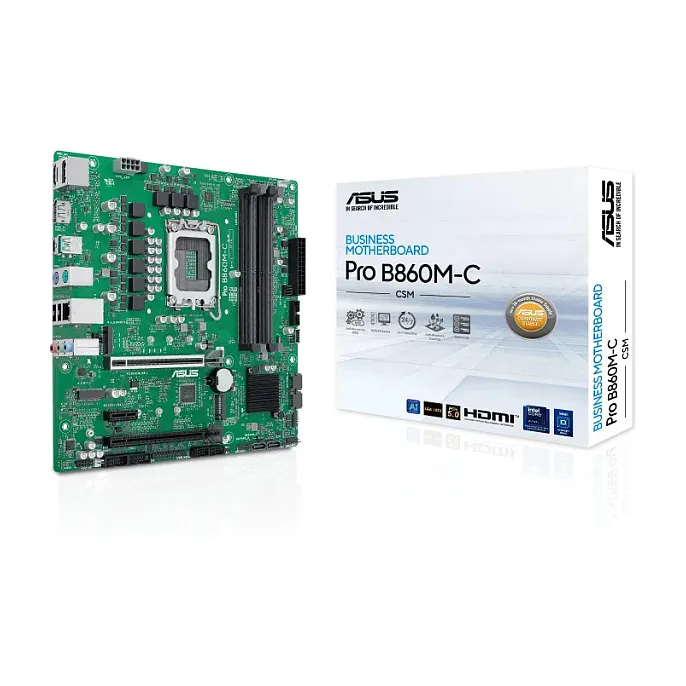

ASUS PRO B860M-C-CSM. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: Gigabit Ethernet
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world’s biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Processor
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)
Supported processor sockets: LGA 1851
Memory
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8666 MHz
Maximum internal memory: 256 GB
Unbuffered memory: Yes
Maximum internal memory per slot: 64 GB
Storage controllers
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID support: Yes
RAID levels: 0, 1, 5, 10
Graphics
Parallel processing technology support: Not supported
Maximum resolution: 3840 x 2160 pixels
Internal I/O
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of CPU fan connectors: 1
Number of chassis fan connectors: 2
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
Number of EPS power connectors (8-pin): 1
Number of COM connectors: 2
TPM connector: Yes
12V power connector: Yes
Rear panel I/O ports
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 2
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
Network
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Features
Motherboard chipset: Intel B860
Audio output channels: 7.1 channels
Product colour: Green
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Cooling type: Passive
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
1st M.2 largest key size: 2280
1st M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
BIOS
BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Weight & dimensions
Width: 244 mm
Depth: 244 mm
Packaging content
Cables included: SATA
Screws included: Yes
