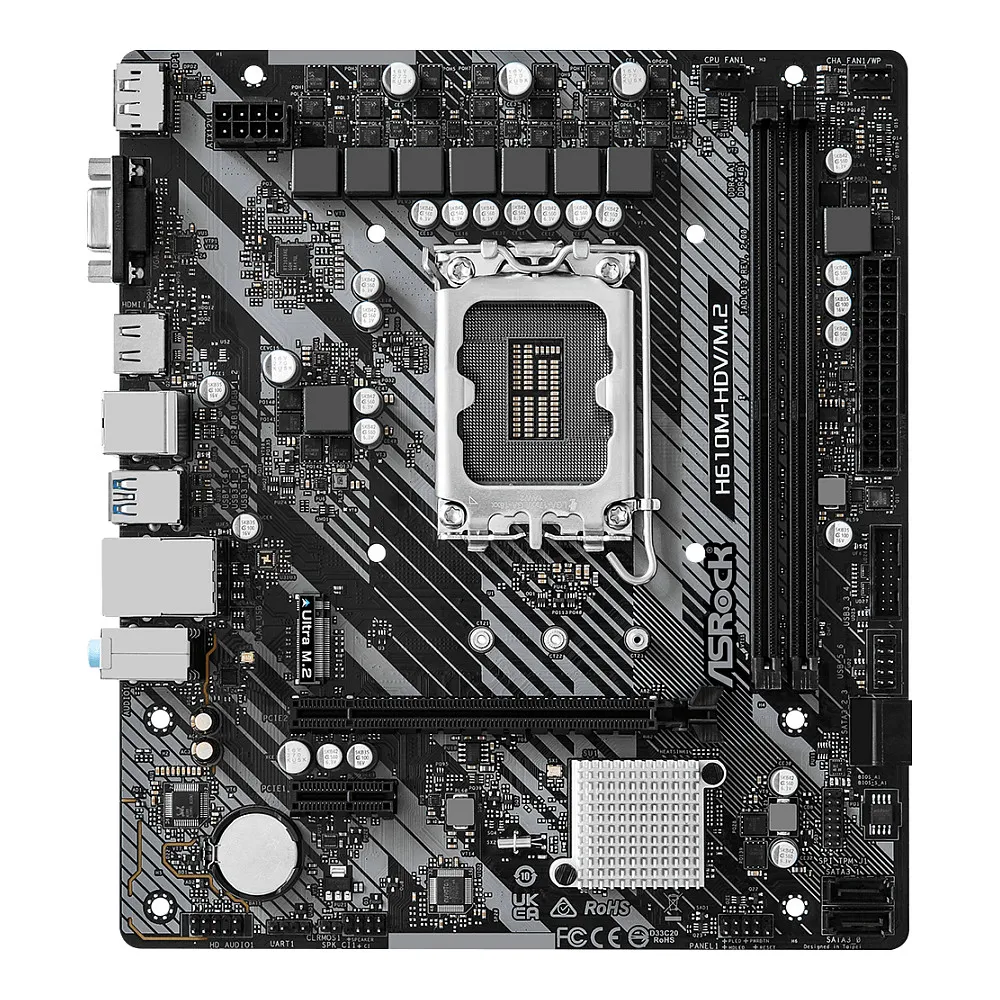

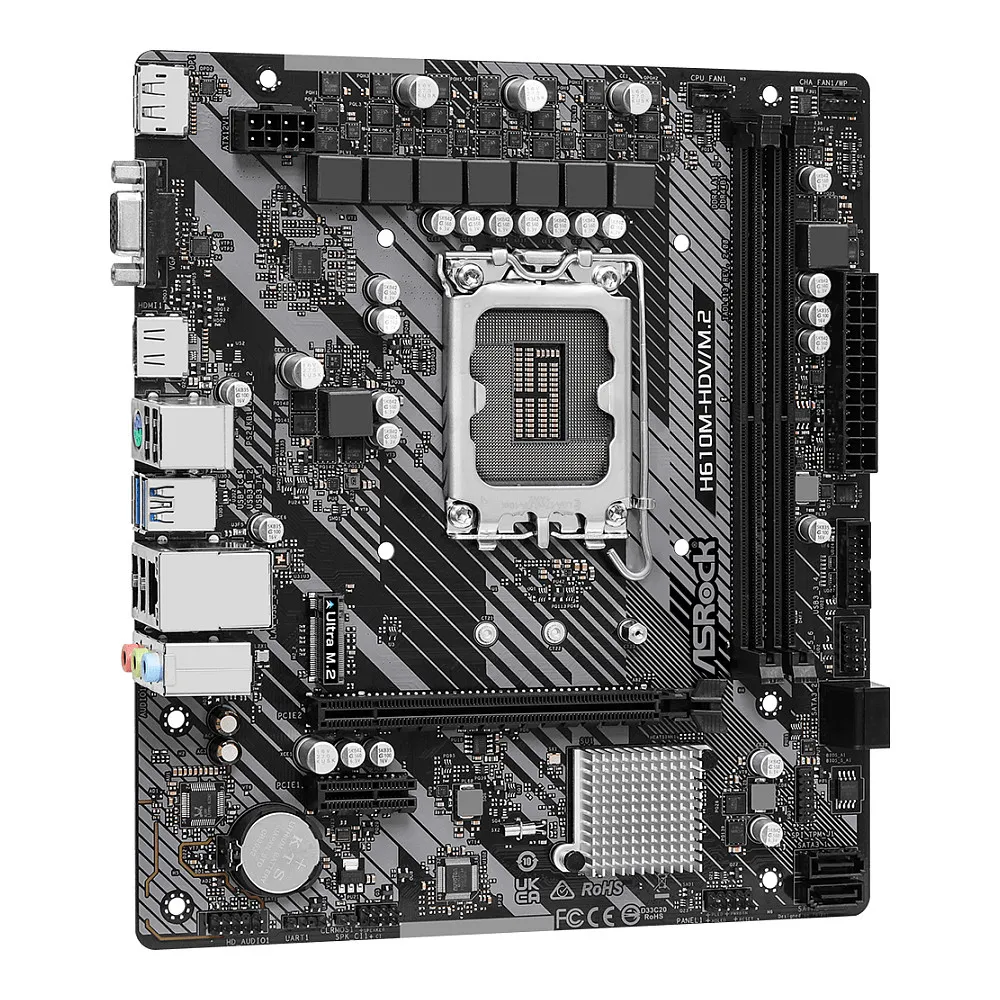

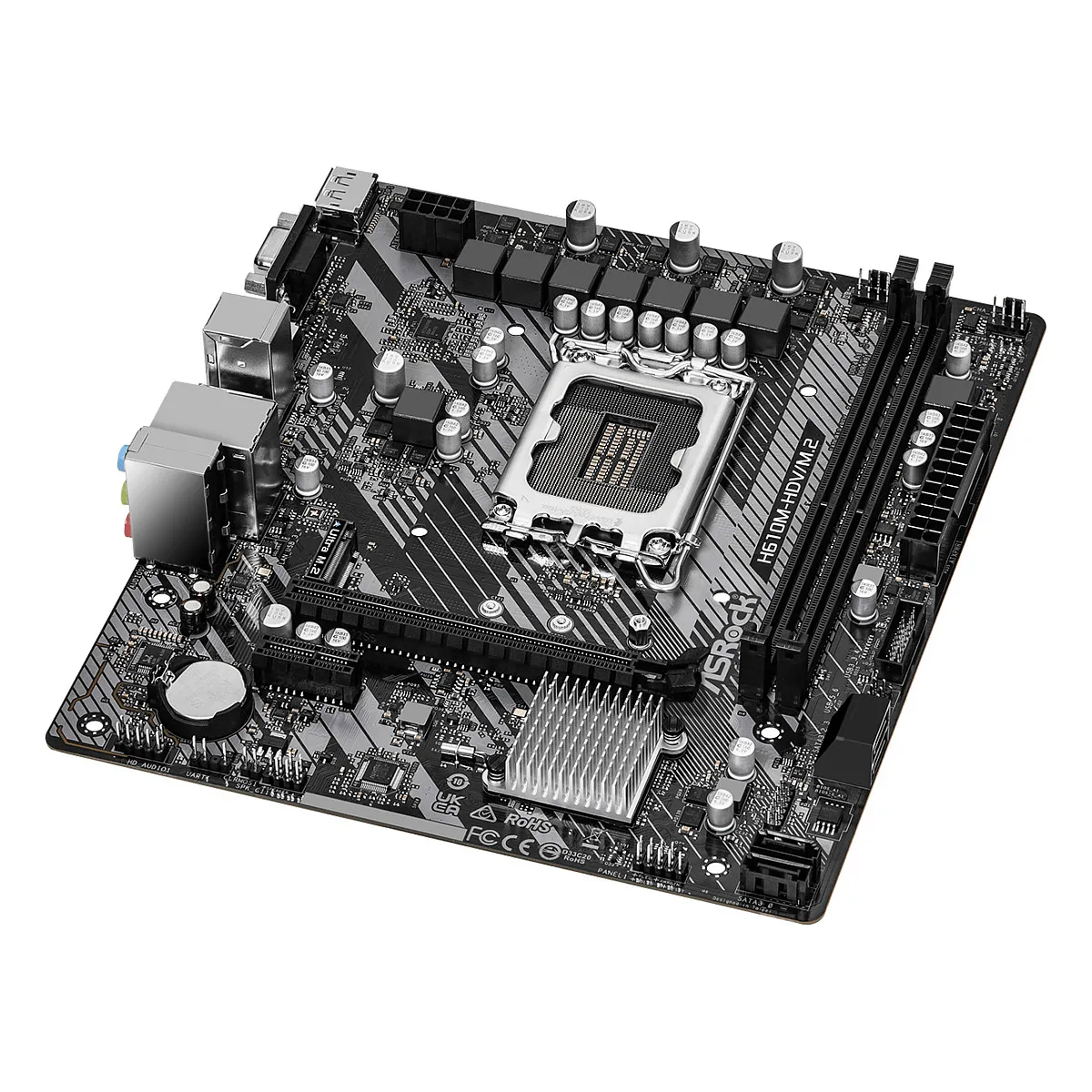

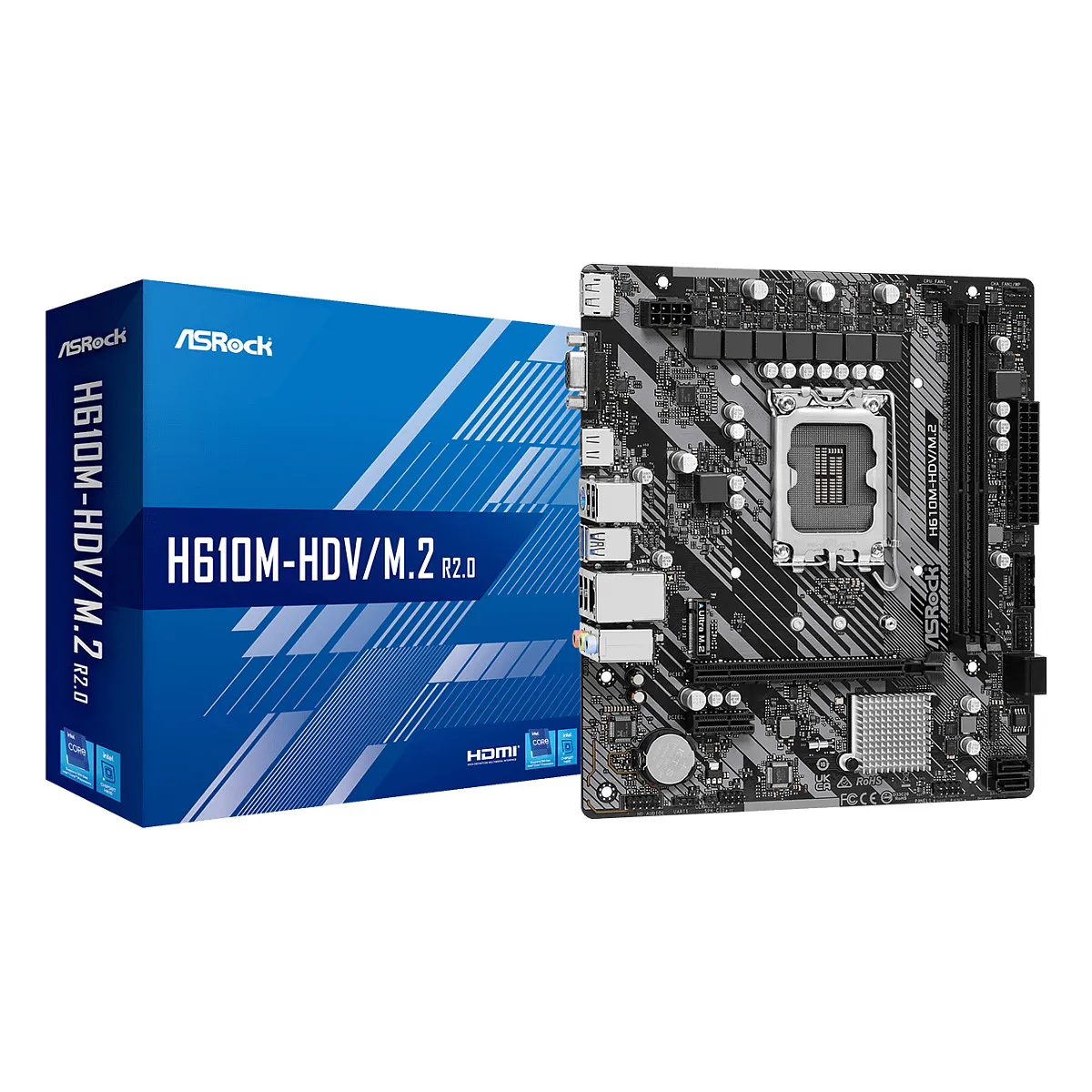

Asrock H610M-HDV/M.2 R2.0. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2. Graphics card family: Intel, Graphics card: Intel Iris Xe Graphics, Maximum resolution: 7680 x 4320 pixels. USB connector type: USB Type-A
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets: LGA 1700
Memory
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 3200 MHz
Maximum internal memory: 64 GB
Feature: Unbuffered memory
Storage controllers
Supported storage drive interfaces: M.2
Number of storage drives supported: 5
Graphics
Graphics card family: Intel
Graphics card: Intel Iris Xe Graphics
Maximum resolution: 7680 x 4320 pixels
Feature: HDCP
Feature: Discrete graphics support
Internal I/O
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Number of SATA III connectors: 4
Feature: Front panel audio connector
Feature: ATX Power connector (24-pin)
Feature: CPU fan connector
Number of chassis fan connectors: 1
Feature: Chassis intrusion connector
Feature: TPM connector
Feature: 12V power connector

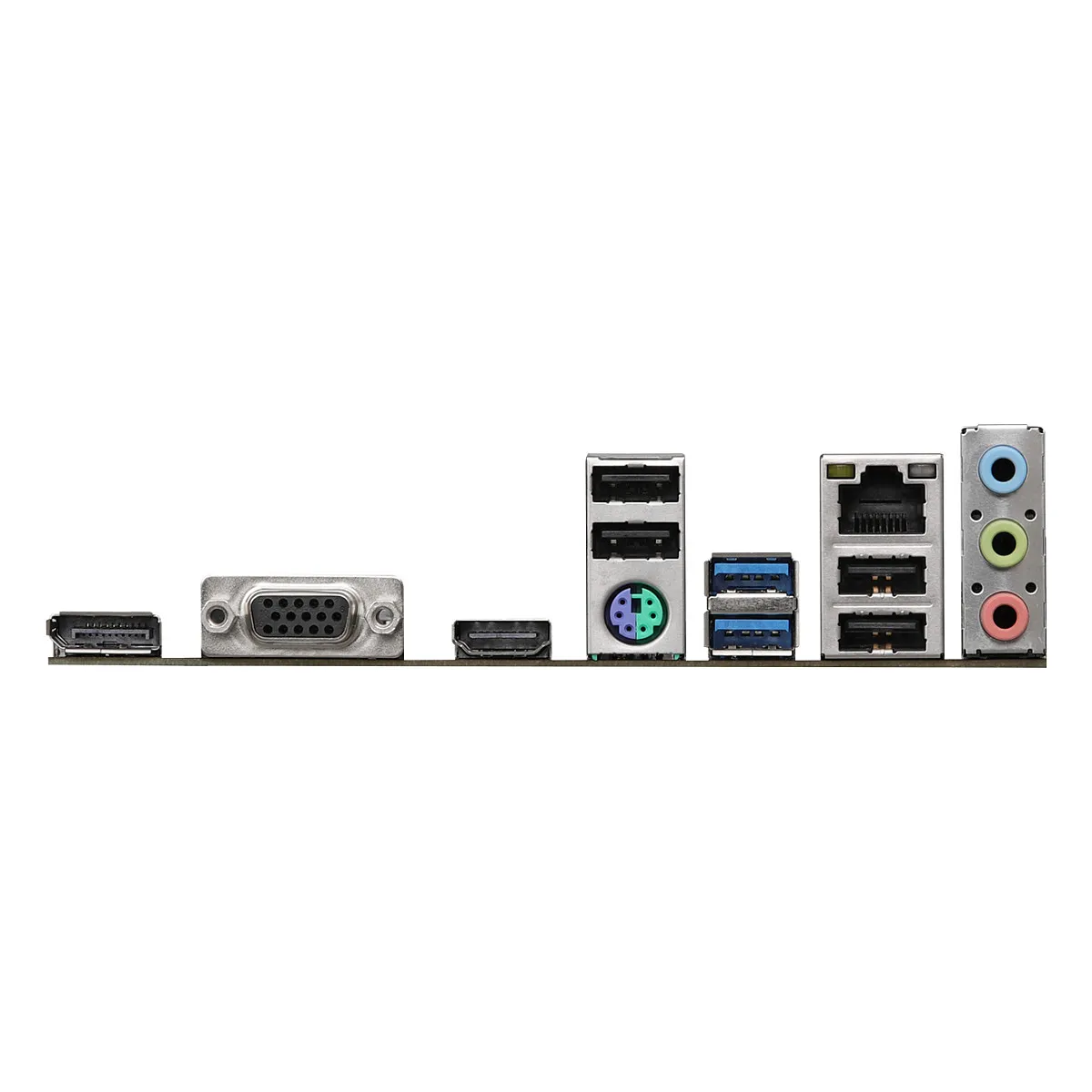

Rear panel I/O ports
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Feature: Line-in
Feature: Microphone in
USB connector type: USB Type-A
Network
Feature: Ethernet LAN
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Feature: Wake-on-LAN ready
Top Wi-Fi standard: Not available
Features
Motherboard chipset: Intel H610
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
Product colour: Black, Grey, Silver
PC health monitoring: CPU, Fan, Voltage, Water cooling
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1
BIOS
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
ACPI version: 6.0
System Management BIOS (SMBIOS) version: 2.7
Weight & dimensions
Width: 220 mm
Depth: 193 mm
Packaging content
Cables included: SATA
Feature: Screws included
Feature: Drivers included
Technical details
Feature: Sustainability compliance
Sustainability certificates: ErP
Compliance certificates: CE, EuP, Federal Communications Commission (FCC)
