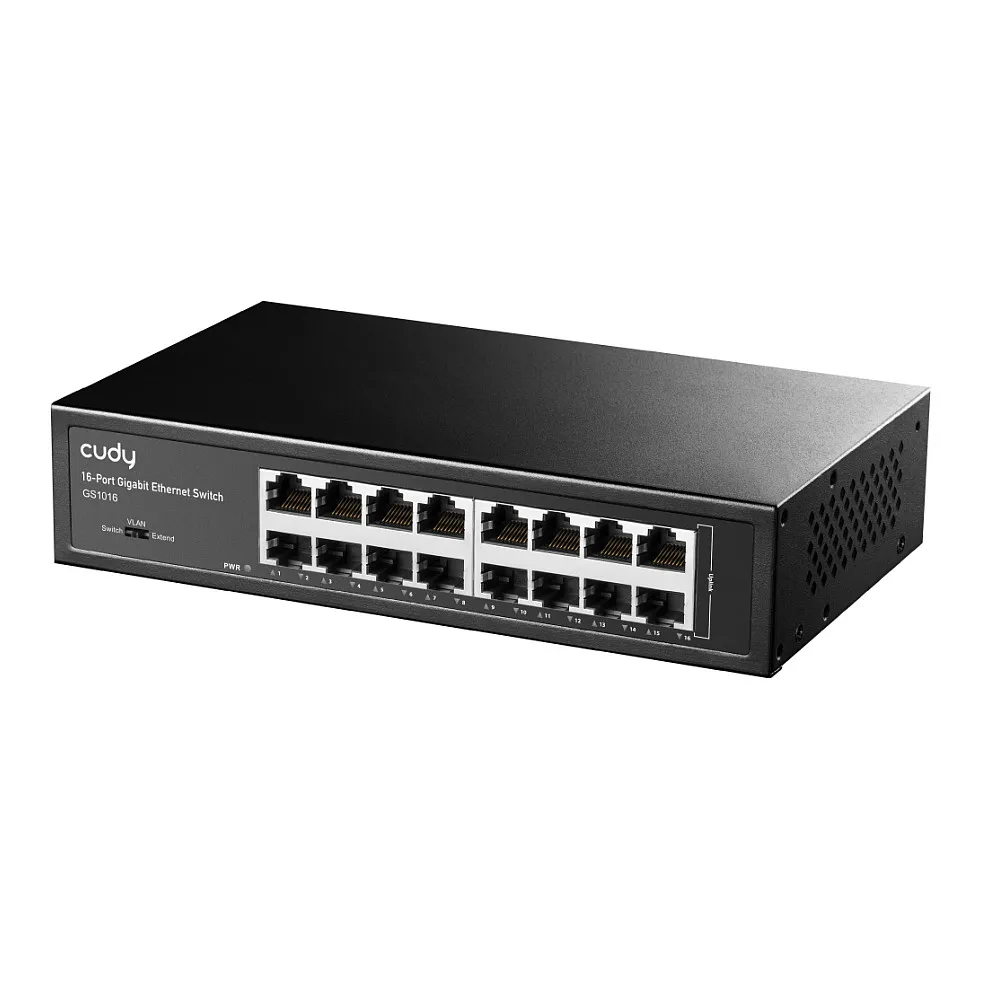

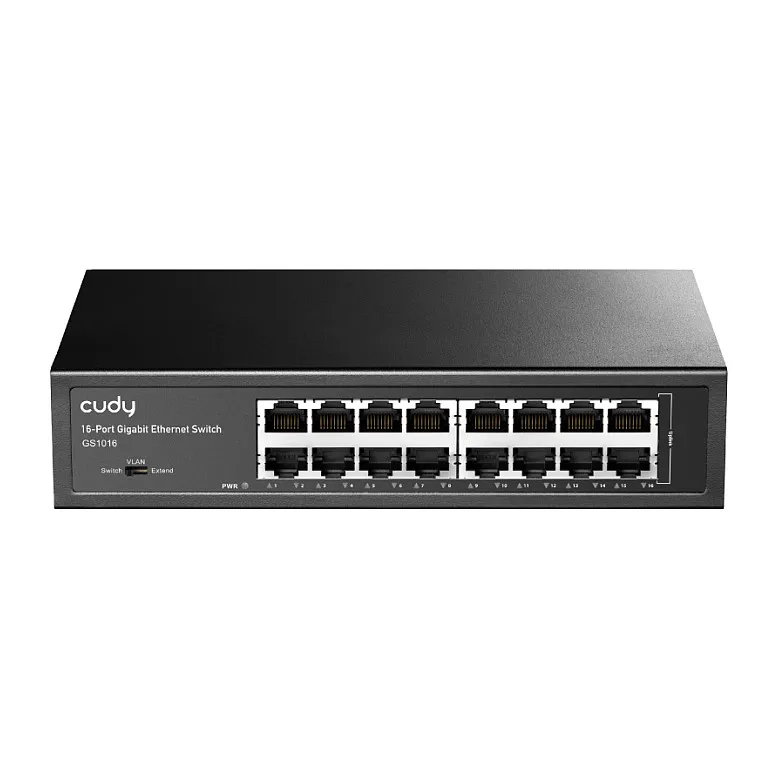

Cudy GS1016. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
VLAN Mode
Protect clients from attack from client-side hacking. With VLAN mode, downlink ports 1-14 can only communicate with uplink ports.
Extend Mode
Prolong the transmission distance of ports 1-14 to a maximum of 250 meters and simplify installation. (These ports’ speed will be capped at 10 Mbps)
DSCP/802.1p QoS
Itentify the packets with DSCP headers and forward those with higher priority first.
IGMP Snooping
Identifies the multicast groups connected to the switch and sends data to the exact ports instead of broadcasting them.
Loop Prevention
Blocks the ports automatically when it detects a loop in the network, preventing downtime caused by misoperation.
Fanless Cooling
Low heat generation and fanless design cater to noise-sensitive enironments.
Installation and Dimension
Mounting Brackets Included
Standard 1U Rackmount
Versatile Scenarios
Office Network
Mall Wi-Fi
Surveillance
ISP FTTB
Switch type: Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 16

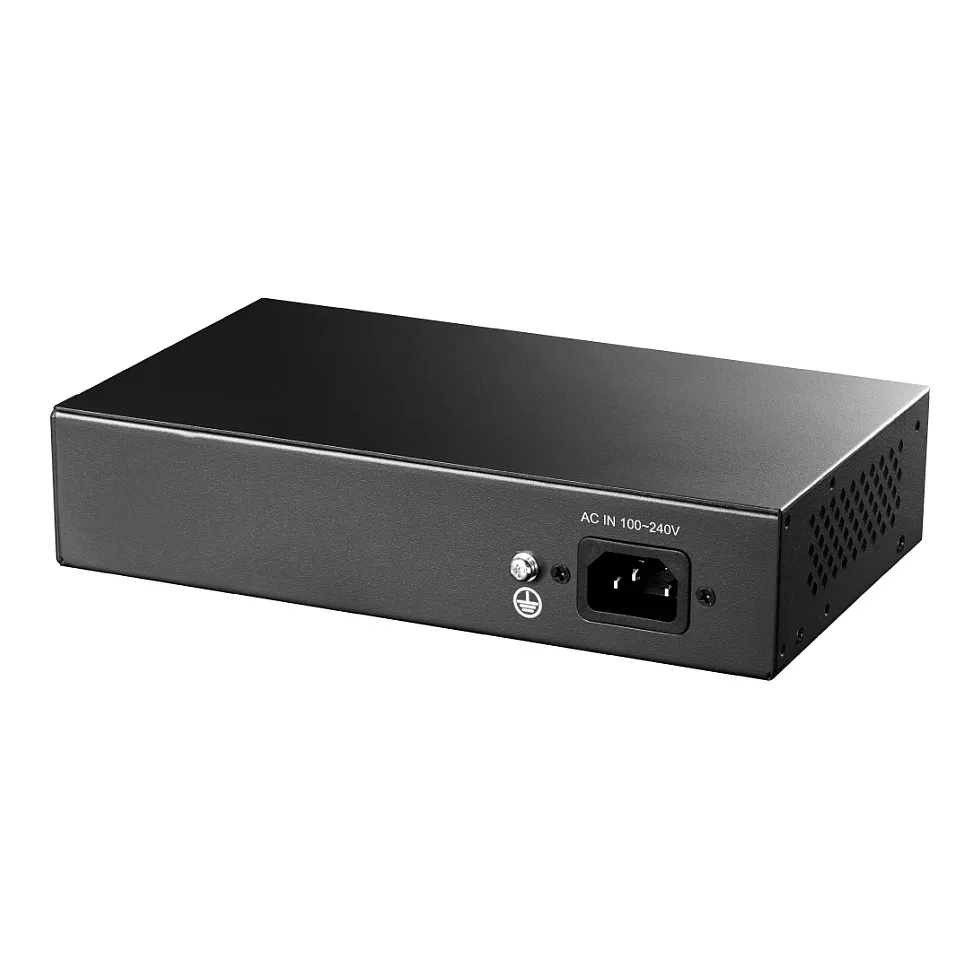

Power connector: AC-in jack
Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported: Cat3, Cat5, Cat5e
Feature: Flow control support
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: VLAN support
Data transmission
Switching capacity: 32 Gbit/s
Forwarding rate: 23.808 Mpps
MAC address table: 8192 entries
Feature: Store-and-forward
Design
Feature: Rack mounting
Product colour: Black
Power
Power source: AC
Feature: Power supply included
AC input voltage: 90 – 260 V
AC input frequency: 50/60 Hz
Power consumption (max): 15 W
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 5 – 90%
Weight & dimensions
Width: 118 mm
Depth: 200 mm
Height: 44 mm

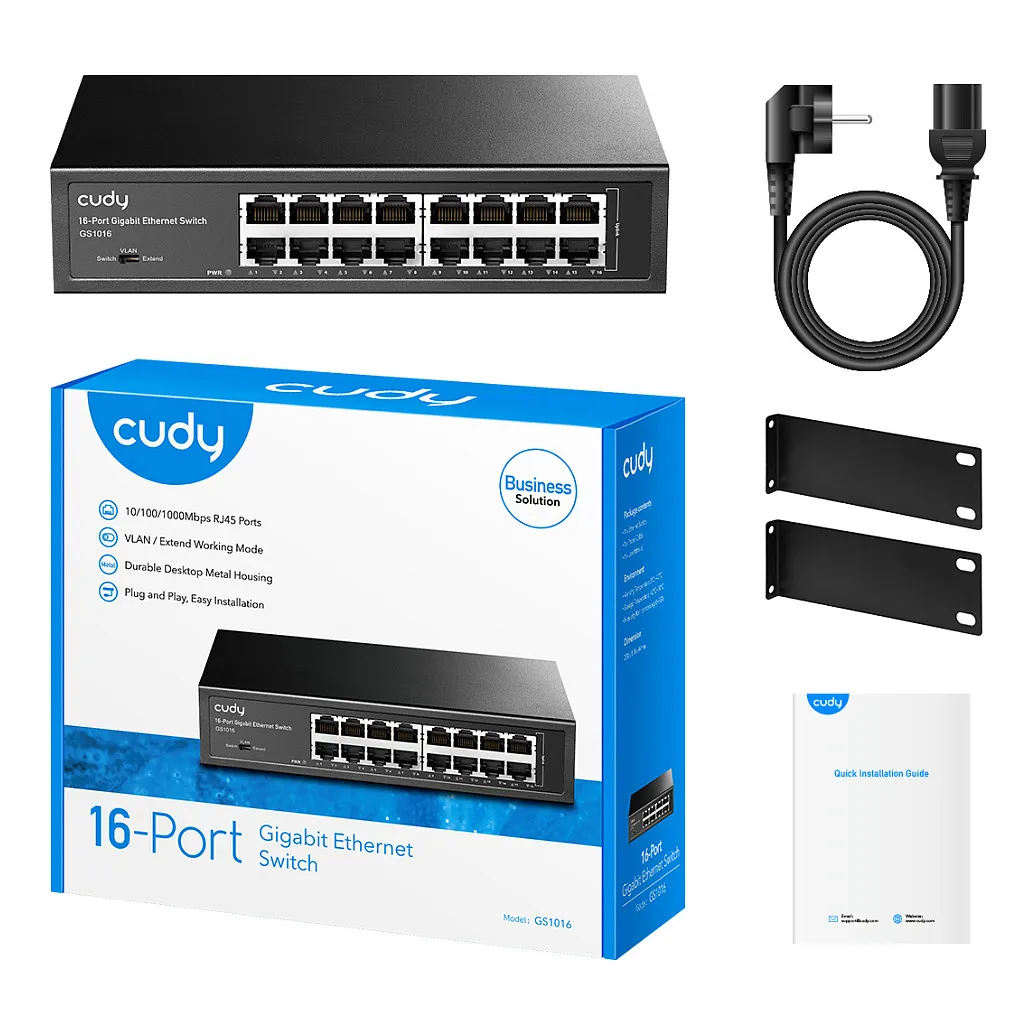

Packaging content
Cables included: AC
Feature: Manual
Packaging data
Package width: 230 mm
Package depth: 202 mm
Package height: 78 mm
