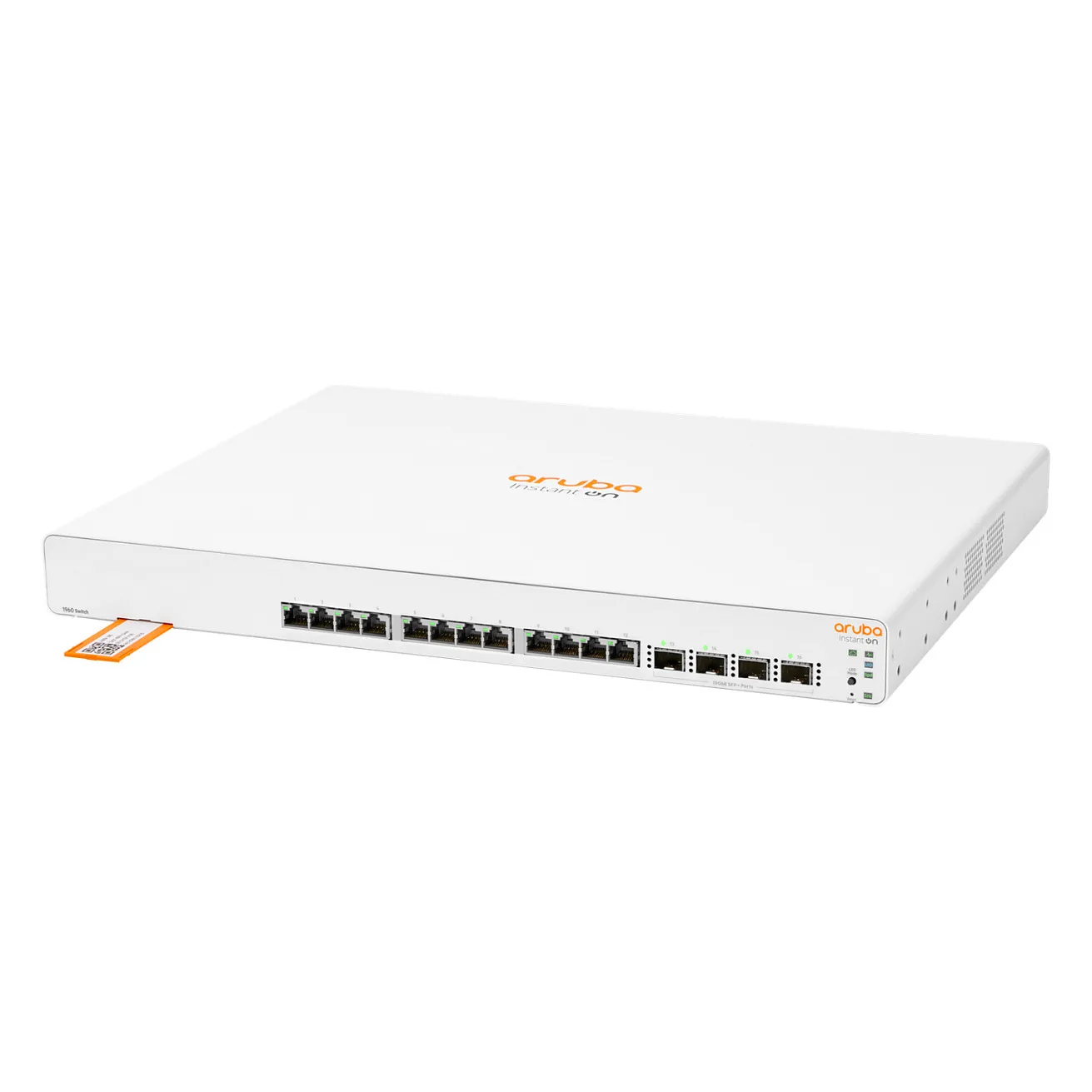

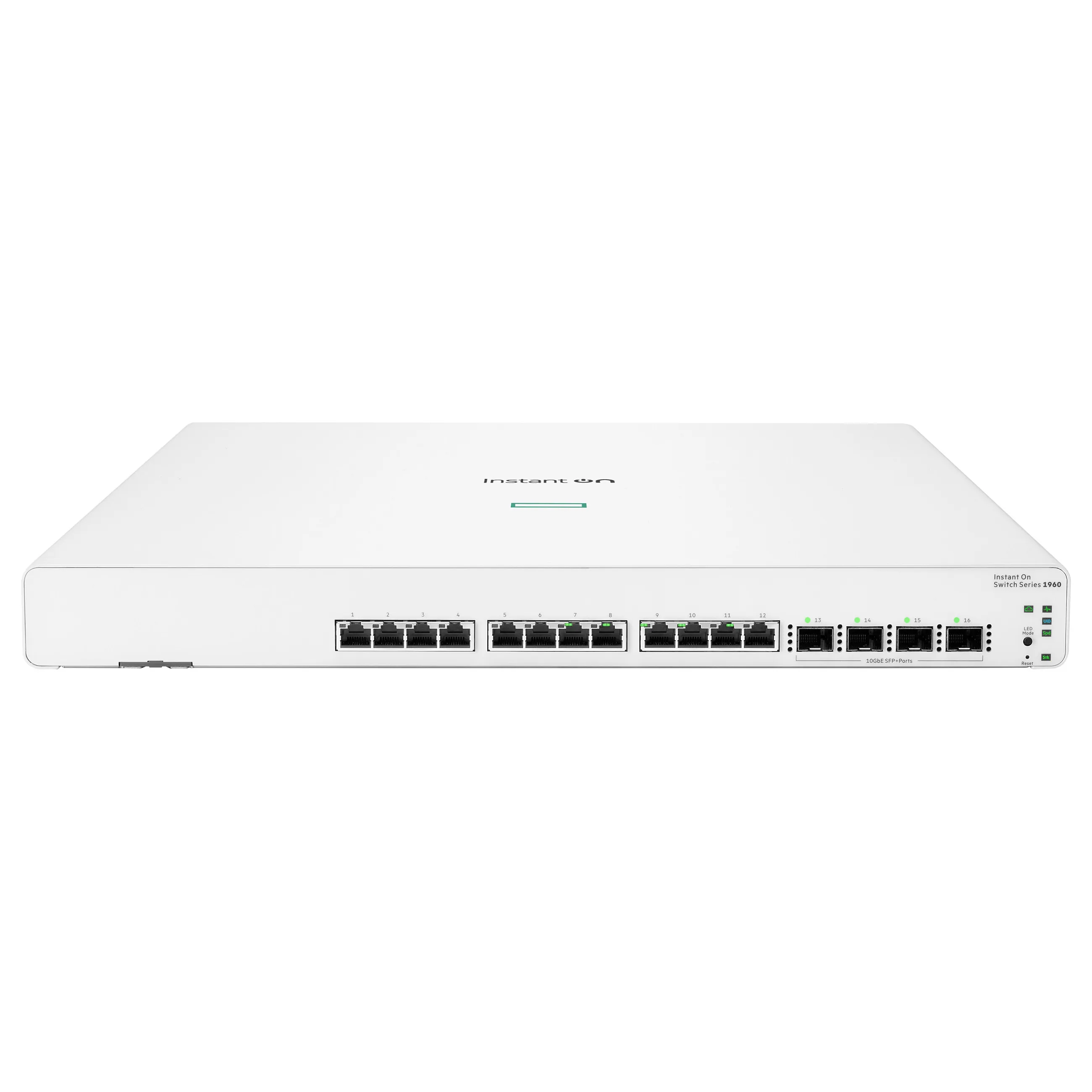

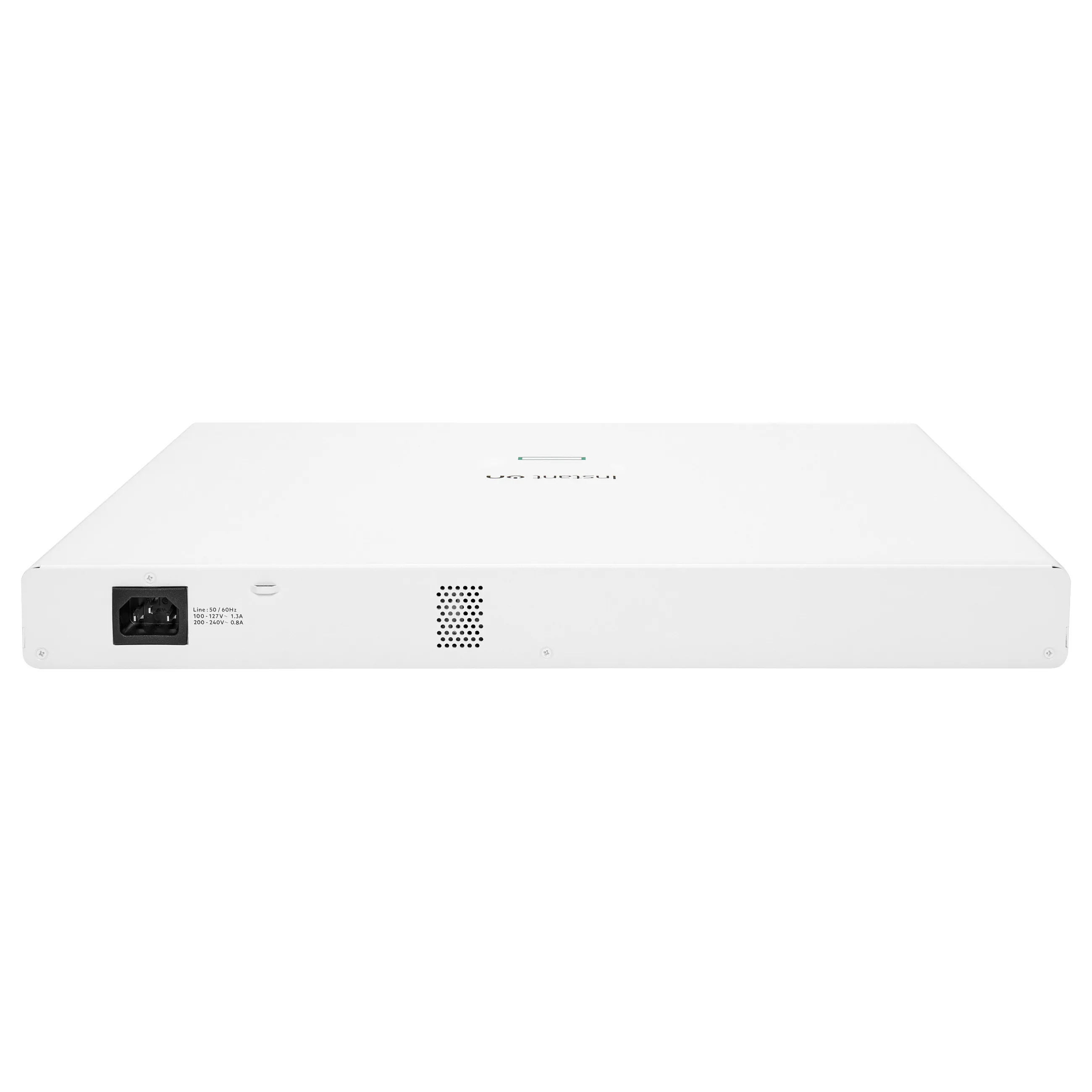

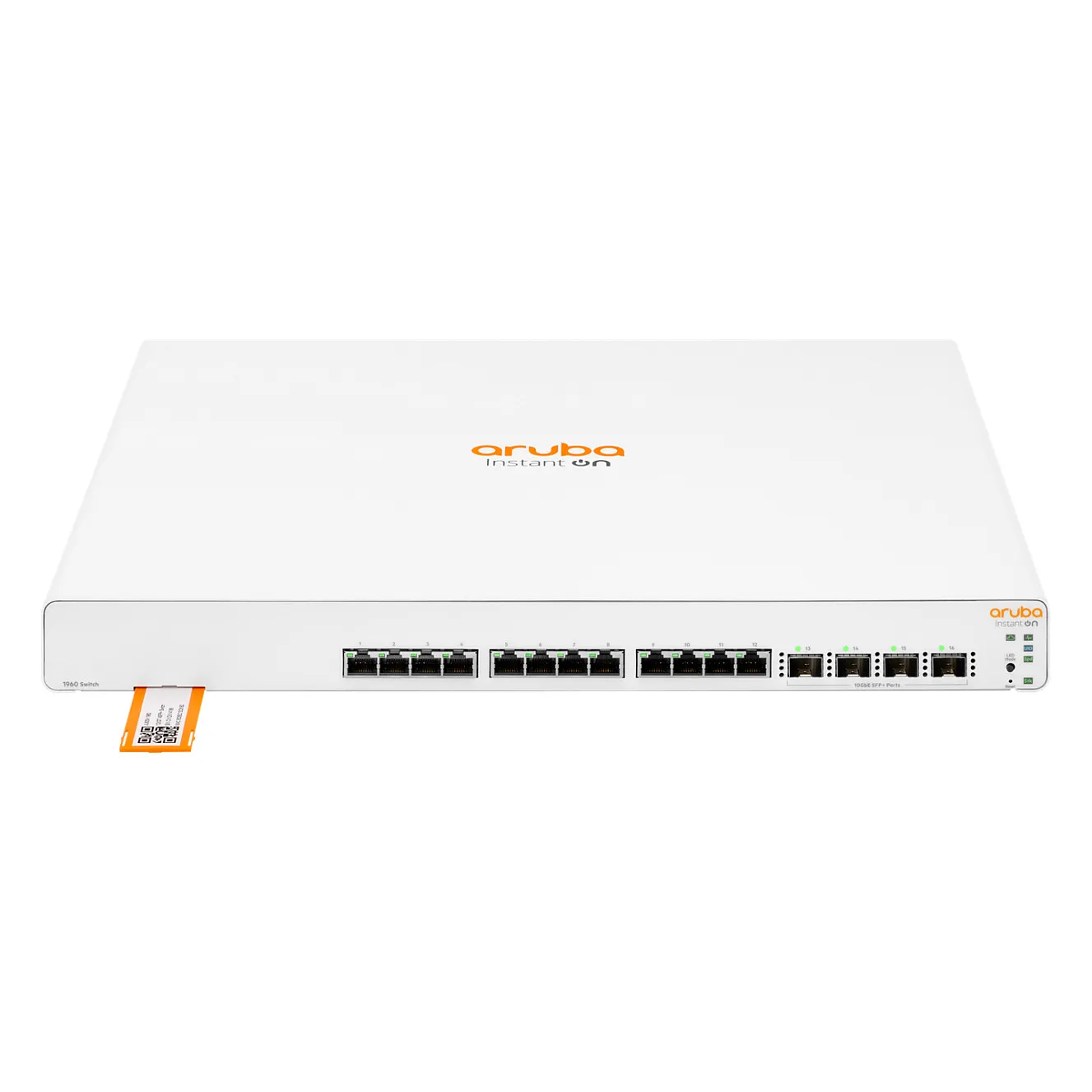

HPE Aruba Networking Networking Instant On Switch 12p 10GBT 4p SFP+ 1960. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1x. Rack mounting, Form factor: 1U
What is new supporting point:
For environments with heavy bandwidth needs, 10 GBase-T and SFP+ uplink ports deliver lightning-fast network speeds and nearly eliminates traffic bottlenecks.
HPE Networking Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
Simplify network management by stacking up to four Instant On 1960 switches and managing them through one single IP address. Stacking supported via local and cloud-managed stacking modes.
Smart-managed layer 2+ Ethernet access switch series ready to deploy in 12-port, 24-port, and 48-port for non-PoE and PoE (supports Class 4 and Class 6 PoE) models.
The Networking Instant On 1960 aggregation switches comes with twelve 10 GBase-T and four SFP+ ports, providing 10 G connectivity to servers, network storage devices and access switches alike.
Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
Cloud-managed: Yes
System event log: Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 12
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 4
Network
Networking standards: IEEE 802.1x
10G support: Yes
Port mirroring: Yes
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Spanning tree protocol: Yes
Auto-sensing: Yes
VLAN support: Yes
Data transmission
Switching capacity: 320 Gbit/s
Throughput: 238 Mpps
MAC address table: 16000 entries
Latency (10-100 Mbps): 7.4 µs
Latency (1 Gbps): 4.2 µs
Latency (10 Gbps): 1.1 µs
Jumbo frames support: Yes
Jumbo frames: 9216
Packet buffer memory: 1.5 MB
Security
DHCP features: DHCP snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
SSH/SSL support: Yes
Authentication: Port-based authentication
Authentication type: RADIUS
Multicast features
Multicast support: Yes
Protocols
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)
IPv4 FIB entries: 512
IPv6 FIB entries: 512
Design
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Product colour: White
Performance
Physical stacking (units): 4
Built-in processor: Yes
Processor model: ARM Cortex-A9
Processor frequency: 800 MHz
Memory type: DDR3-SDRAM
Internal memory: 1024 MB
Flash memory: 512 MB
Power
Power source: AC
Power supply included: Yes
AC input voltage: 200 – 240 V
AC input frequency: 50 – 60 Hz
Power consumption (max): 160 W
Power consumption note: Maximum: 100-127V: 130W 200-220V: 160W Idle: 100-127V: 60W 200-220V: 80W
Power over Ethernet (PoE)
Power over Ethernet (PoE): No
Other features
Memory and processor: Single-Core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB
I/O ports: 12 RJ-45 autosensing 1000/10 GBASE-T ports (IEEE 802.3ab Type 1000 BASE-T, IEEE 802.an 10 GBASE-T); Duplex: 100 BASE-TX: half or full; 1000 BASE-T: full only 10 GBASE-T: full only 4 SFP+ 10GbE ports
Performance management: HPE Networking Instant On Cloud; Web browser; SNMP Manager
Weight (imperial): 4.35 kg (9.6 lbs)
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -40 – 70 °C
Operating relative humidity (H-H): 15 – 95%
Storage relative humidity (H-H): 15 – 90%
Operating altitude: 0 – 3000 m
Weight & dimensions
Width: 350.5 mm
Depth: 442.5 mm
Height: 44 mm
Weight: 4.3 kg
Logistics data
Harmonized System (HS) code: 85176990
