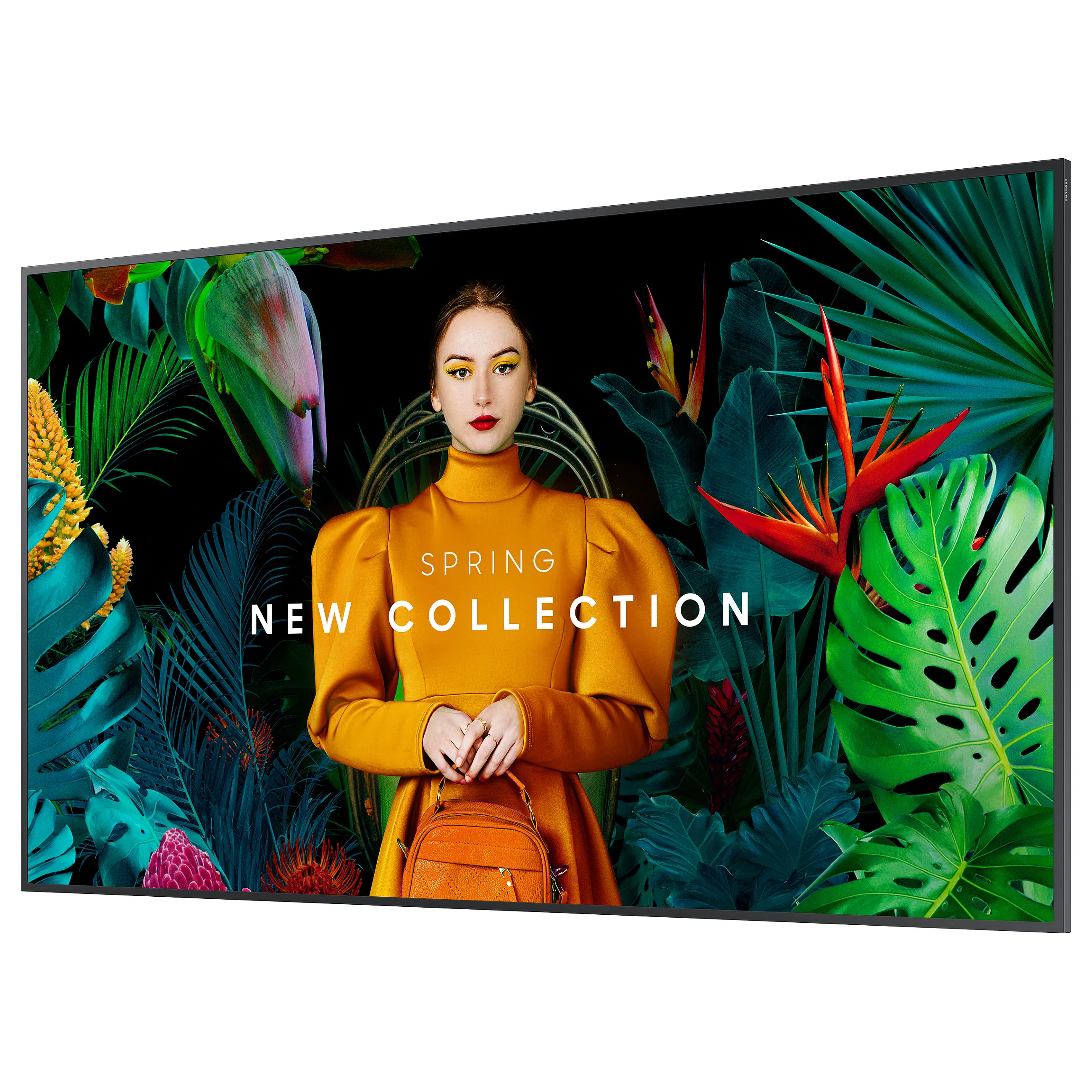

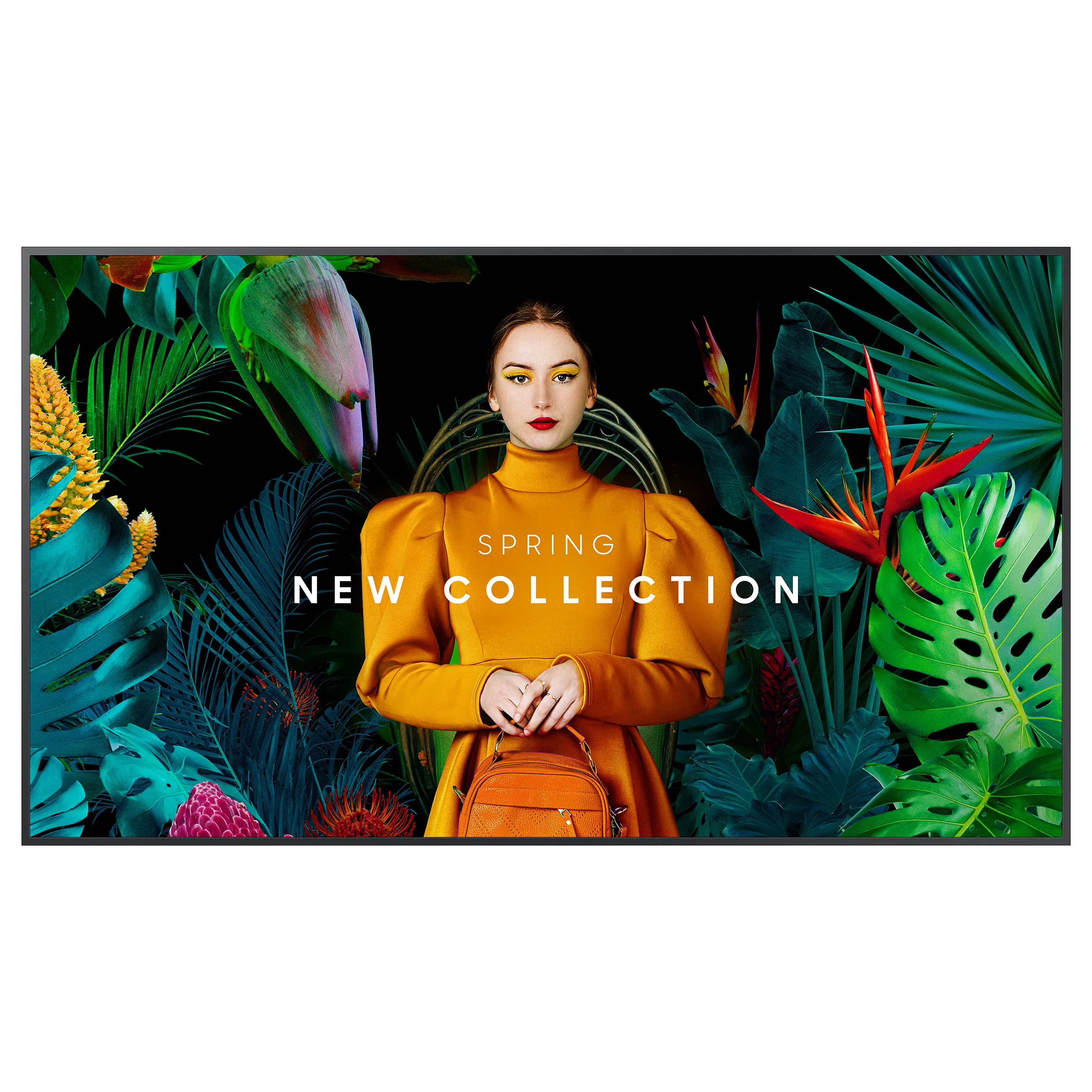

Samsung QM43C. Product design: Digital signage flat panel. Display diagonal: 109.2 cm (43"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 7.0. Product colour: Black

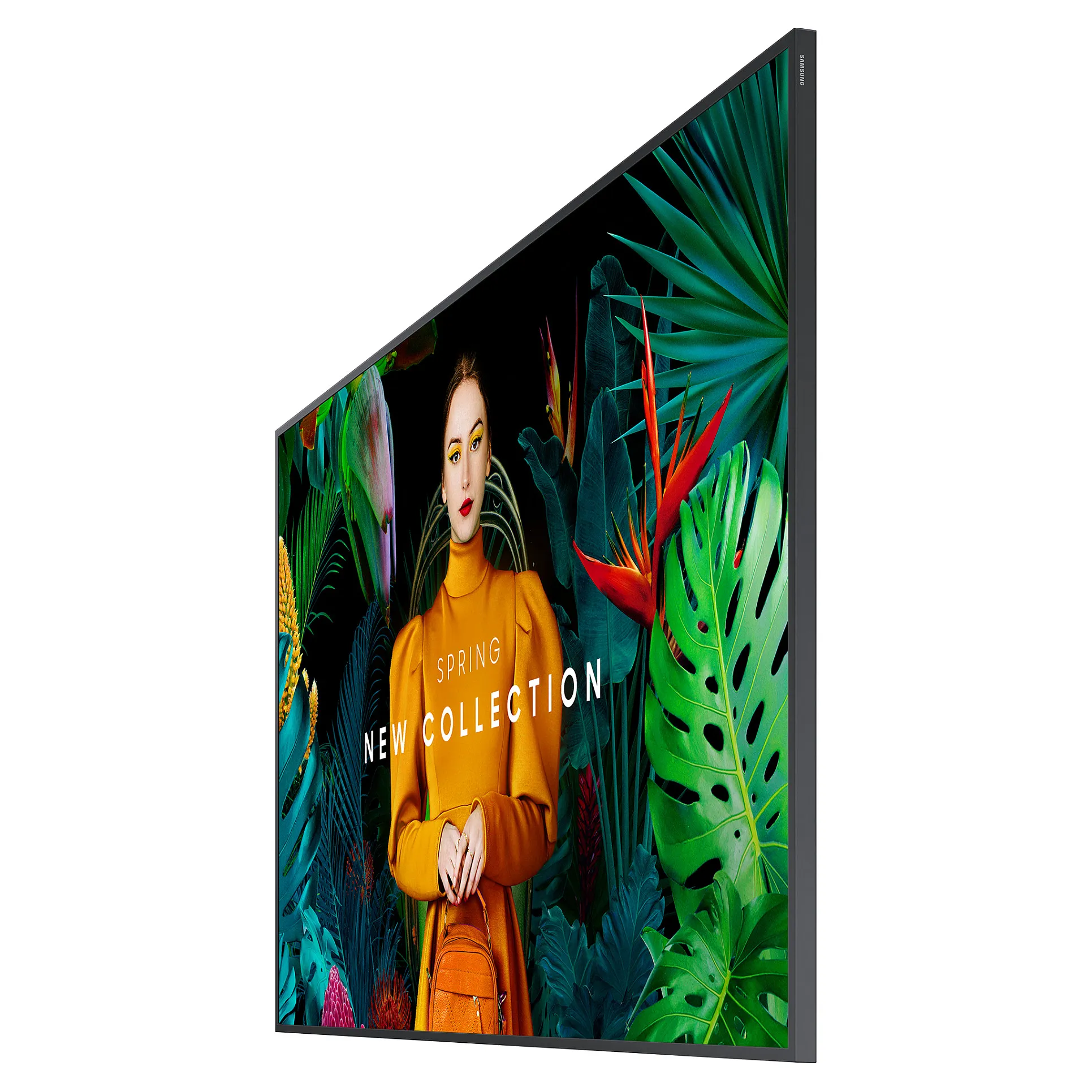

Ultra Slim Depth
The QMC’s unparalleled ultra-slim thickness of 28.5mm makes it the thinnest option in Samsung’s UHD series. It comes with the Slim Fit Wall Mount, which allows you to install it neatly and easily in any environment. QMC optimizes space with its sleek design that blends seamlessly into your business.
Clean visuals in landscape or portrait mode
Even Bezel
The bezels are consistent and even on all four sides of the display, with the same thickness and dimensions. The new even bezel design prevents any visual issues from arising when the display is adjusted to portrait mode.
Secure and even mounting

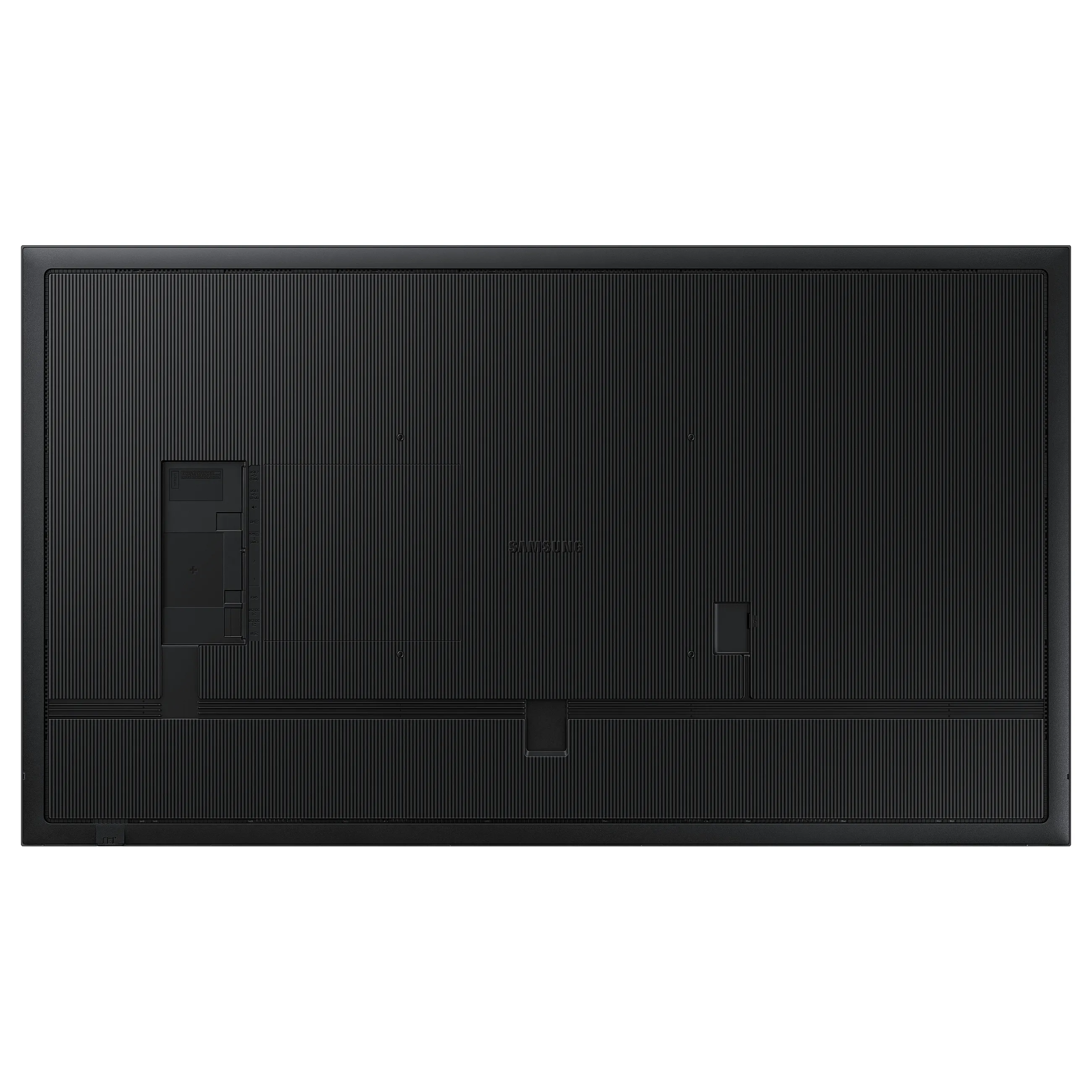

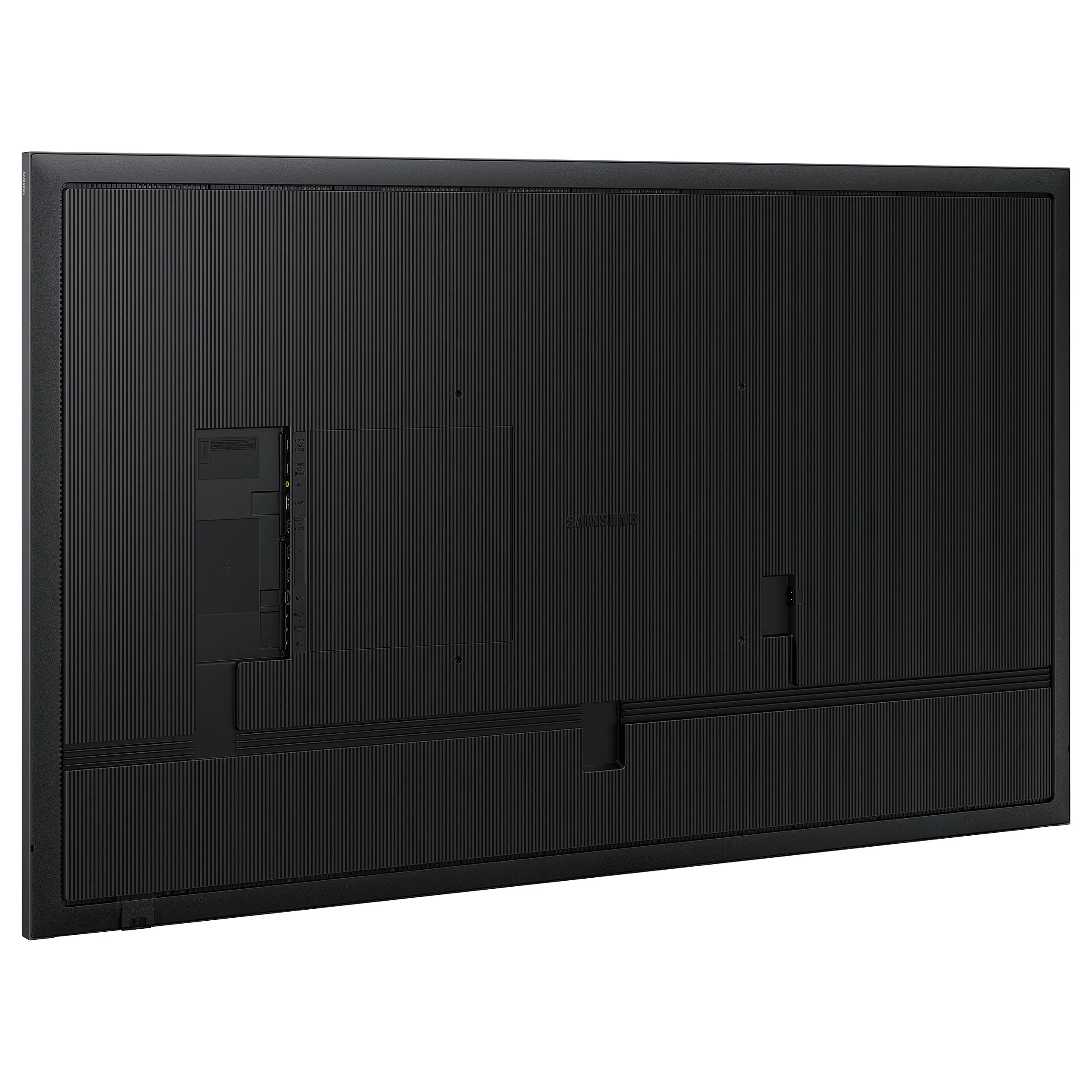

Centered VESA Holes
The central positioning of the VESA holes on the back of the display evenly distribute its weight for secure mounting. With the VESA holes now shifted to the center, users can adjust the display to portrait mode without the display tilting unintentionally.
Lifelike colour, born in a pure state with fine crystal
Dynamic Crystal Colour
Every picture is more immersive with one billion shades of colour. Dynamic Crystal Colour delivers true-to-life variations, allowing customers to see every subtlety.
View lifelike shades of colour in powerful 4K
Quantum Processor Lite 4K
Samsung’s industry-leading video processing technology enhances every piece of content for clarity and consistency. Intelligent UHD upscaling technology, powered by Samsung’s Quantum Processor Lite 4K, elevates lower-resolution video to UHD, providing a professional picture quality.
Ensure critical information is always visible
Non-glare
QMC displays feature reliable, non-glare panels that provide better visibility from all angles, any time of day. The non-glare display enables businesses to deliver accurate information in critical locations, like airports and train stations.
Connect with convenience
Home UI
QMC boasts greater usability with an upgraded home screen UI. Popular categories like Favorites, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Collaborate between screens with wire-free speed
Smartview+
SmartView+ enables wireless screen sharing without cable connections, ensuring easy collaboration. Users can now enable the screen sharing function at the start of a meeting, allowing the meeting admin to quickly switch between screens with one click.
Simplified calibration between screens with mobile app
Smart Calibration
Guarantee complete brand consistency across every display in every location. Using the Samsung mobile app, Smart Calibration ensures every display is calibrated correctly, showcasing brand logos and other collateral in the exact colours required.
Enhance professional environments with expert tools
Professional Modes
Built-in professional modes enable more possibilities in specific verticals. Director Mode minimizes post-processing, aligning content to the director’s original intention. Medical teams can simulate medical images such as X-rays with DICOM Simulation Mode, meeting DICOM’s full grayscale standards
Change the way to manage your display
Samsung VXT
Samsung VXT CMS is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues while effortlessly creating and deploying content with no previous training needed.
Everyday Sustainability
Energy Star / EPEAT* / TÜV Rheinland Carbon Footprint*
Samsung is making diverse efforts to reduce our environmental impact in smart signage, and encouraging users to pursue a more sustainable life.
Panel type: IPS
Display diagonal: 109.2 cm (43″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Touchscreen: No
Response time: 8 ms
Contrast ratio (typical): 1200:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.245 x 0.245 mm
Display diagonal (metric): 108 cm
Horizontal scan range: 30 – 81 kHz
Vertical scan range: 48 – 75 Hz
Haze rate: 25%
Pixel frequency (max): 594 MHz
RGB colour space: NTSC
Colour gamut: 72%

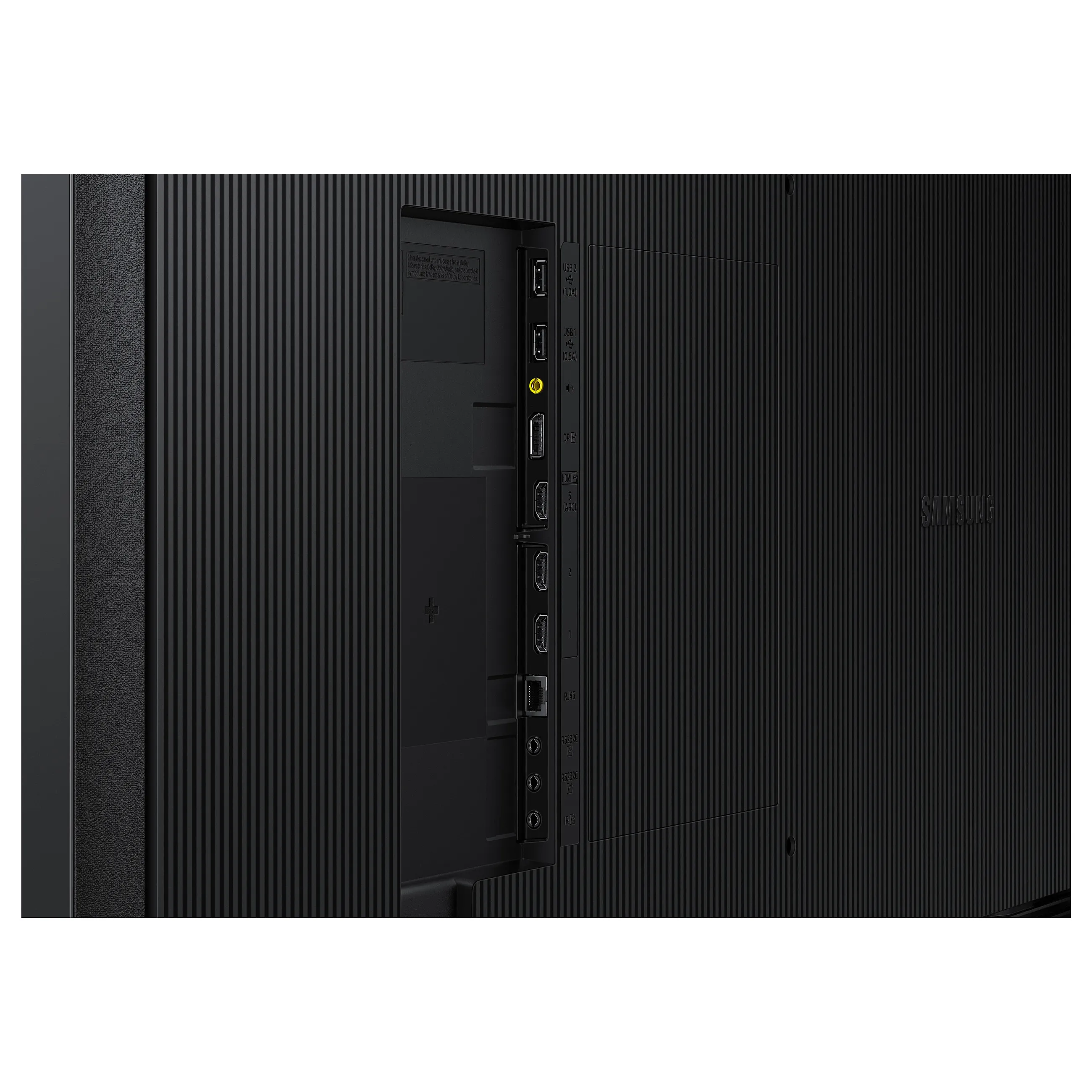

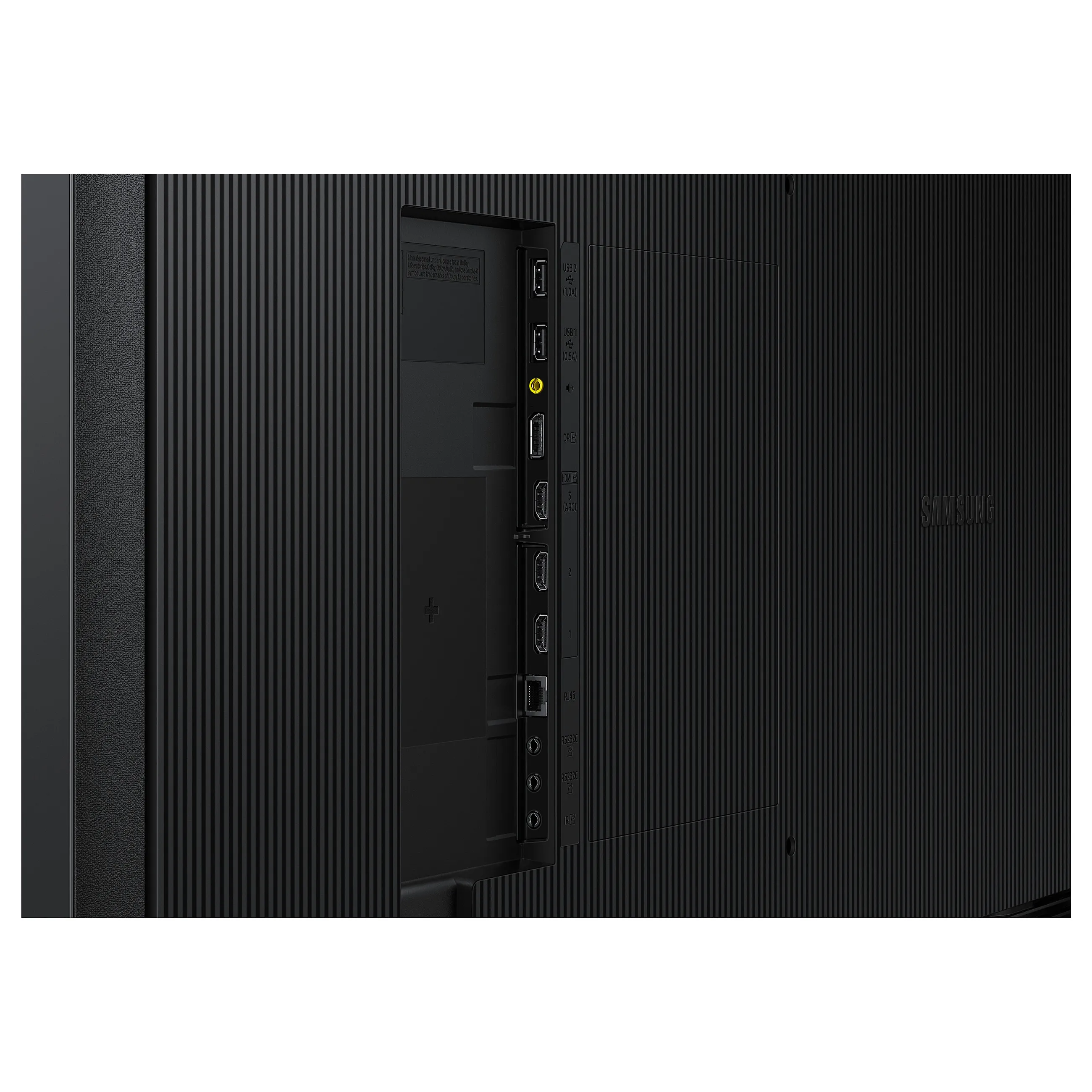

Ports & interfaces
HDMI ports quantity: 3
HDMI version: 2.0
HDMI input ports quantity: 3
DVI port: No
DisplayPorts quantity: 1
DisplayPorts in: 1
DisplayPort version: 1.2
USB port: Yes
USB ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
RS-232 interface: Yes
Infrared data port: Yes
Remote (IR) input: 1
Audio
Built-in speaker(s): No
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
VESA mounting: Yes
Panel mounting interface: 200 x 200 mm
Bezel width (bottom): 1.15 cm
Bezel width (side): 1.15 cm
Bezel width (top): 1.15 cm
Bezel colour: Charcoal Black
Anti-glare screen: Yes
Mounting type: Wall
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
HDCP: Yes
HDCP version: 2.2
Power
Power consumption (typical): 121 W
Power consumption (sleep): 0.5 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 74 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Computer system
Computer system: Yes
Computer system type: System on Chip (SoC)
Built-in processor: Yes
Operating system installed: Tizen 7.0
Weight & dimensions
Display width: 969.5 mm
Display depth: 28.5 mm
Display height: 557.8 mm
Display weight: 8.8 kg
Packaging data
Package width: 1093 mm
Package depth: 126 mm
Package height: 667 mm
Package weight: 11.3 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: Class B60950-1, 62368-1
Network
Ethernet LAN: Yes
Wi-Fi: Yes
Technical details
Audio out (mini jack): 1
Other features
Bluetooth: Yes
Flash memory: 16000 MB
RS-232 input ports: 1
RS-232 output ports: 1
RJ-45 input ports: 1
Optional features: WMN-B50SCSTN-L4355C
