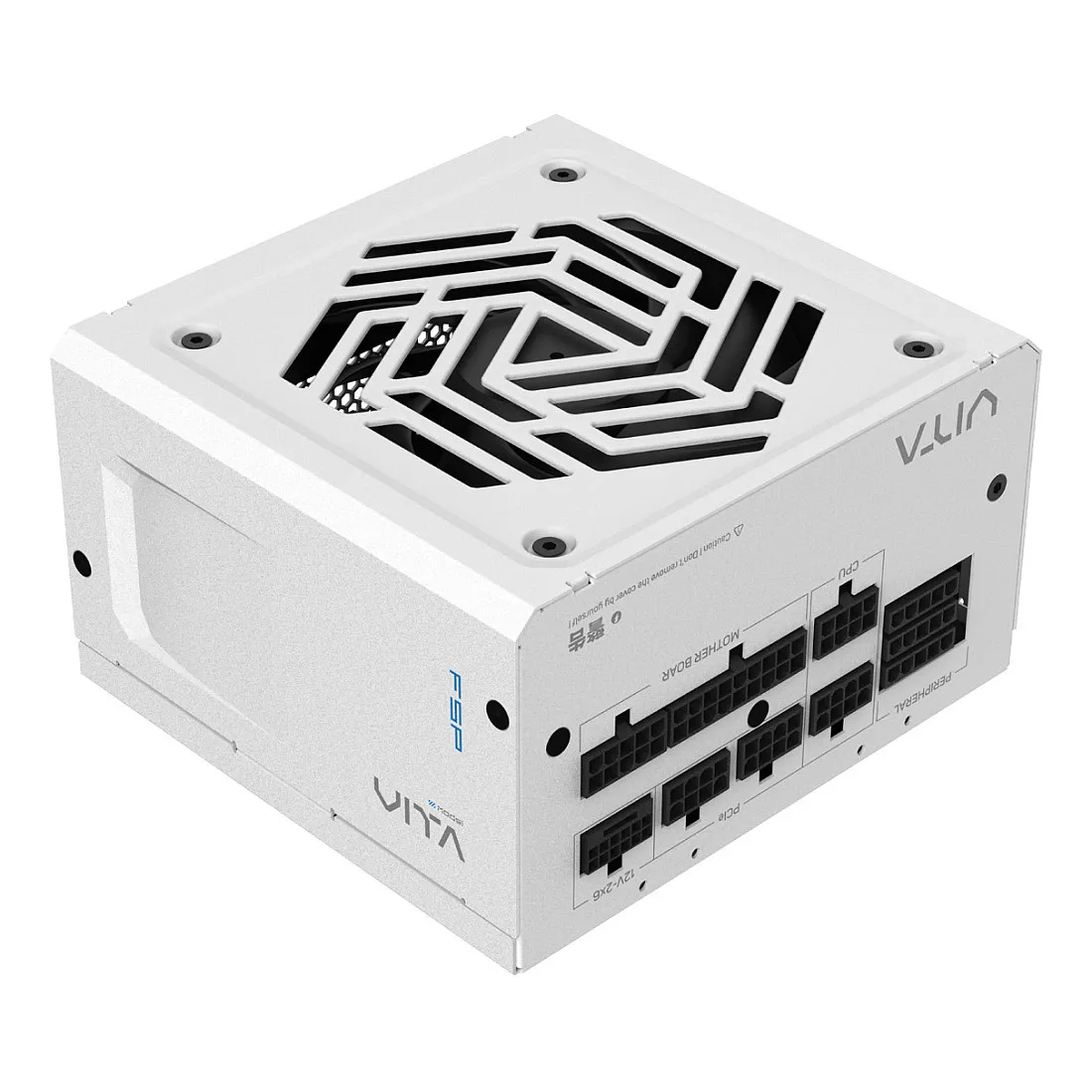

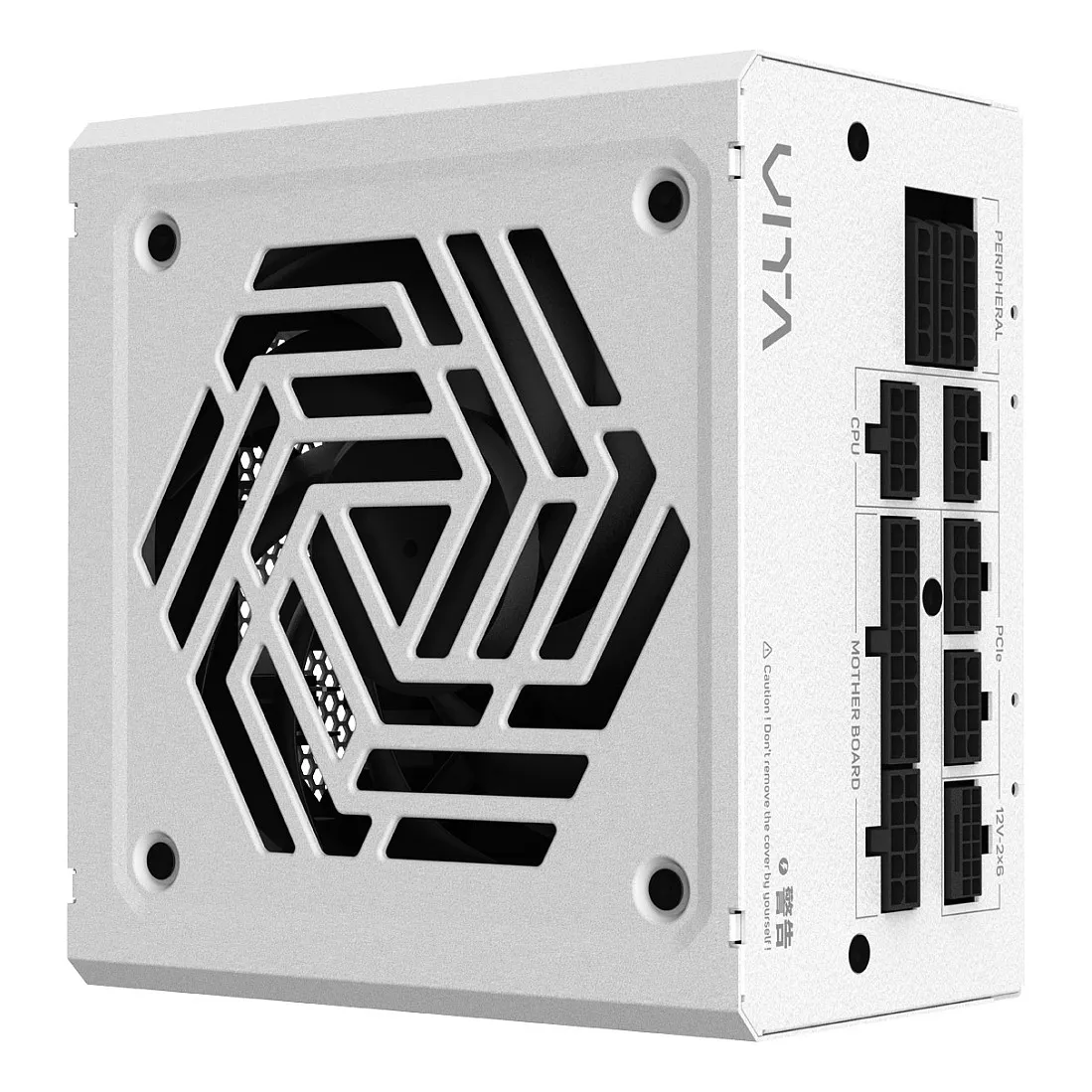

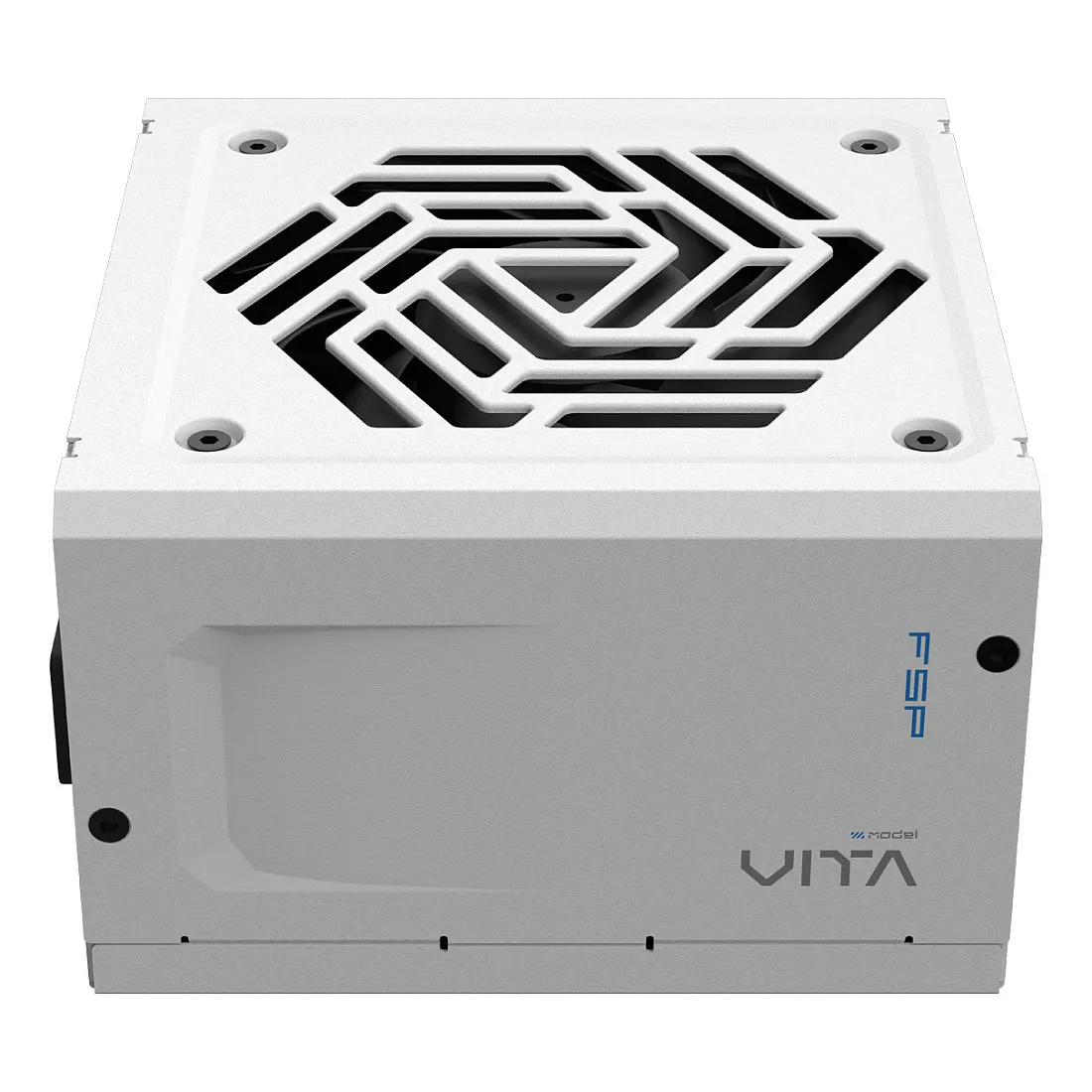

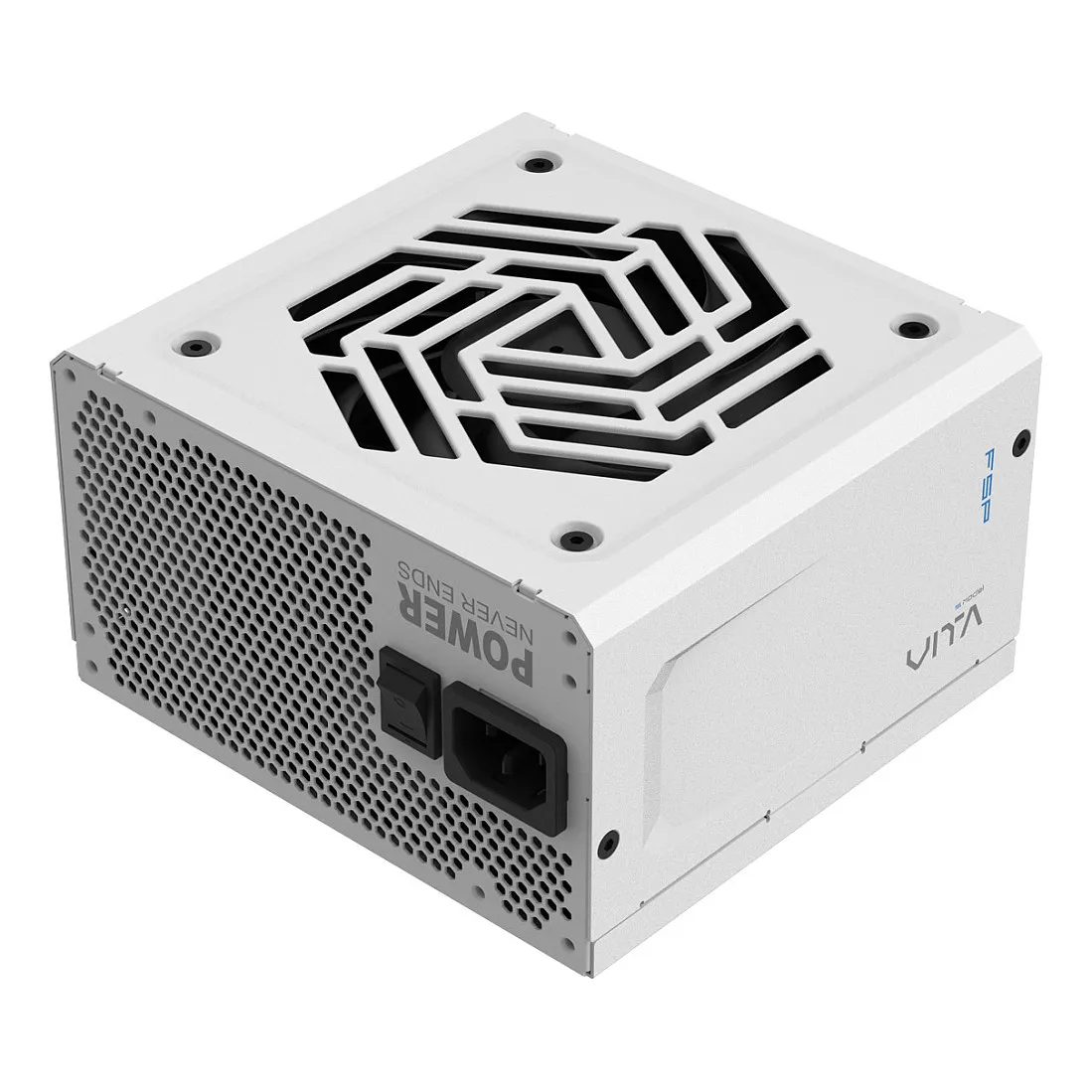

FSP VITA GM 1000W White Power supply unit ATX ATX3.1 White. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,810,965,655 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS® gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.
LLC Resonant-converter Topology with Synchronous Rectifier
Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.
+5V & 3.3V DC to DC Circuit Design
Increase the efficiency and stabilize the output voltage to ensure system stability.
105°C Japanese Bulk Capacitor
Equip your PC with the best-in-class capacitors to offer maximize reliability, performance, and lasting power.
120 mm hydraulic bearing (HYB) fan
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
Powerhouse Single +12V Rail
This high-amperage +12V rail delivers high load capabilities, it’s ideal for intensive workloads of high-performance CPUs and graphics cards.
The Force Comes with You
Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.
The Force Comes with You
Dual PCIe 6+2Pin cables and a versatile 12V-2×6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.

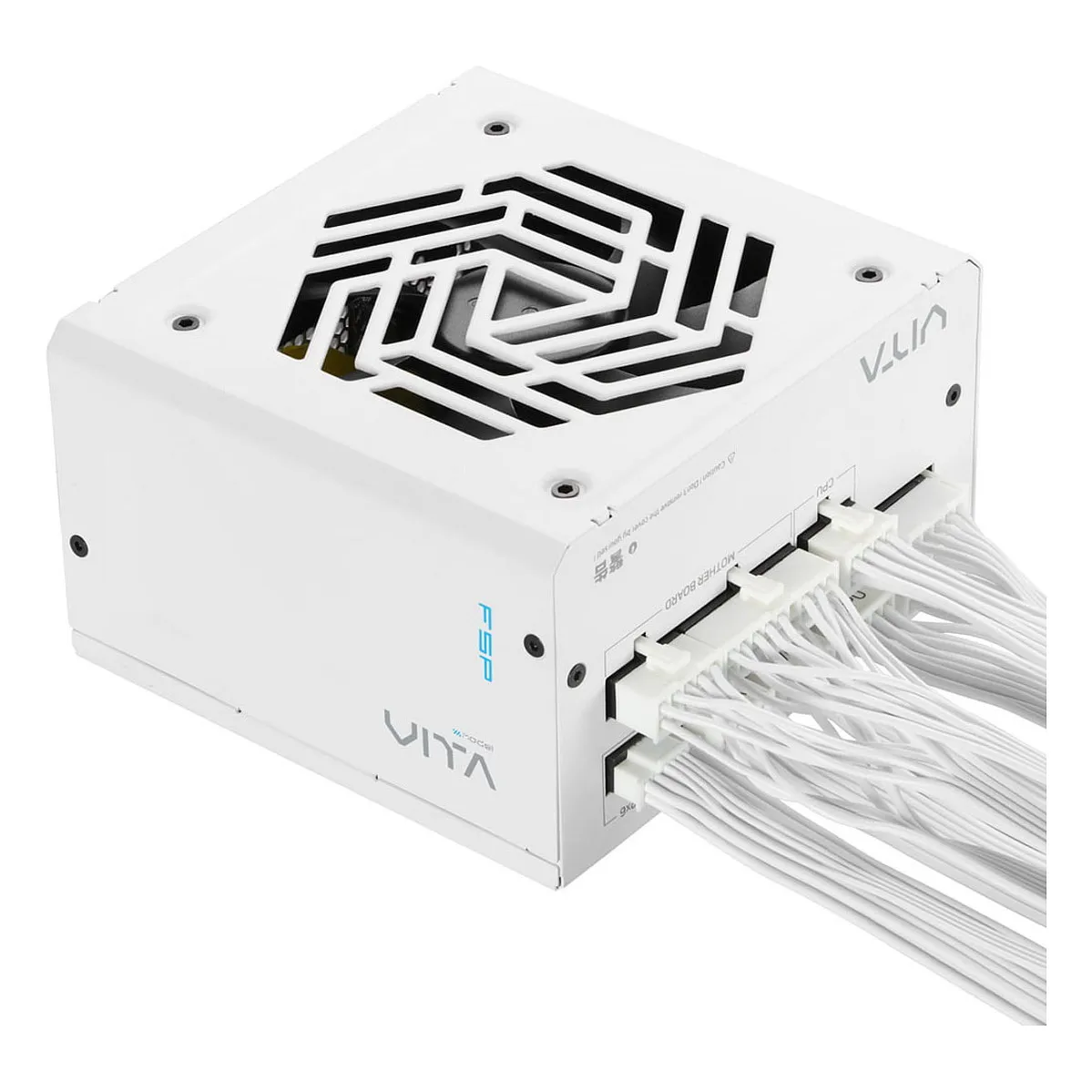

Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.
Compact PSU Size：140 x 150 x 86mm
140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
Fortress-level Protection
Our comprehensive circuit shields your valuable components from harm.
Total power: 1000 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 12 – 6 A
Power factor: 0.9
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 100 W
Combined power (+12V): 1000 W
Combined power (+5V): 100 W
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+3.3V): 20 A
Max output current (+12V): 83.33 A
Max output current (+5V): 20 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: No load operation, Over current, Over power, Over total voltage, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage

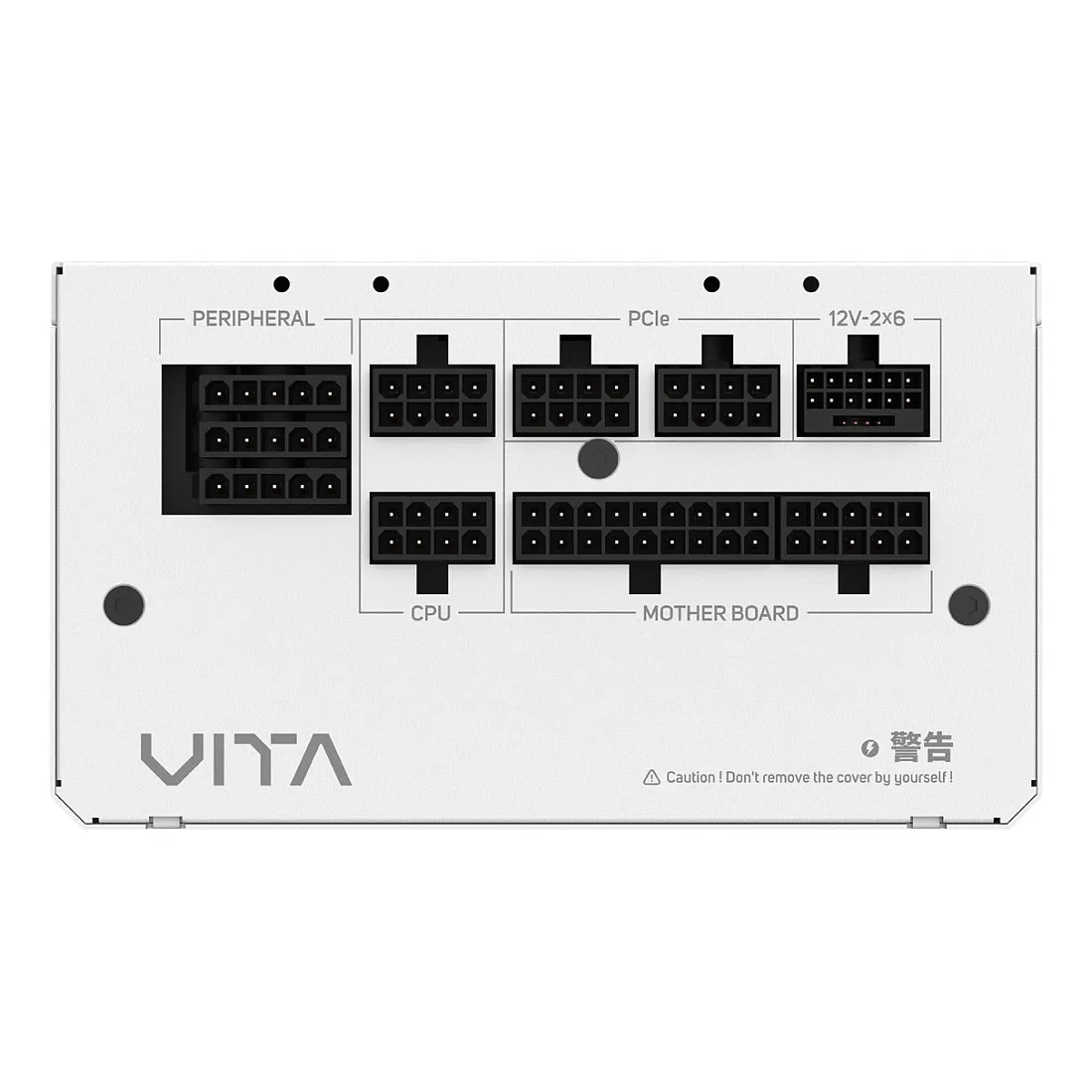

Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 60 cm
Number of SATA power connectors: 6
SATA power cable length: 500,810,965,655 mm
Number of SATA power cables: 2
Peripheral (Molex) power connectors (4-pin): 2
Peripheral (Molex) power cable length: 810,965 mm
PCI Express power connectors (6+2 pin): 4
PCI Express power connectors (12+4 pin): 1
Feature: CPU power connector (4+4 pin)
CPU power cable length: 70 cm
Feature: PCI Express connector
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
EPS version: 2.92
Bearing technology: Hydraulic
Design
Product colour: White
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Fan location: Top
Feature: On/off switch
Packaging content
Cables included: CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
