Samsung QM32C. Product design: Digital signage flat panel. Display diagonal: 81.3 cm (32"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 400 cd/m², HD type: Full HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen. Product colour: Black
Display
Panel type: IPS
Feature: LED backlight
Display diagonal: 81.3 cm (32″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 400 cd/m²
HD type: Full HD
Response time: 8 ms
Contrast ratio (typical): 1200:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.36375 x 0.36375 mm
Horizontal scan range: 30 – 81 kHz
Vertical scan range: 48 – 75 Hz
Haze rate: 1%
Pixel frequency (max): 148.5 MHz
RGB colour space: NTSC

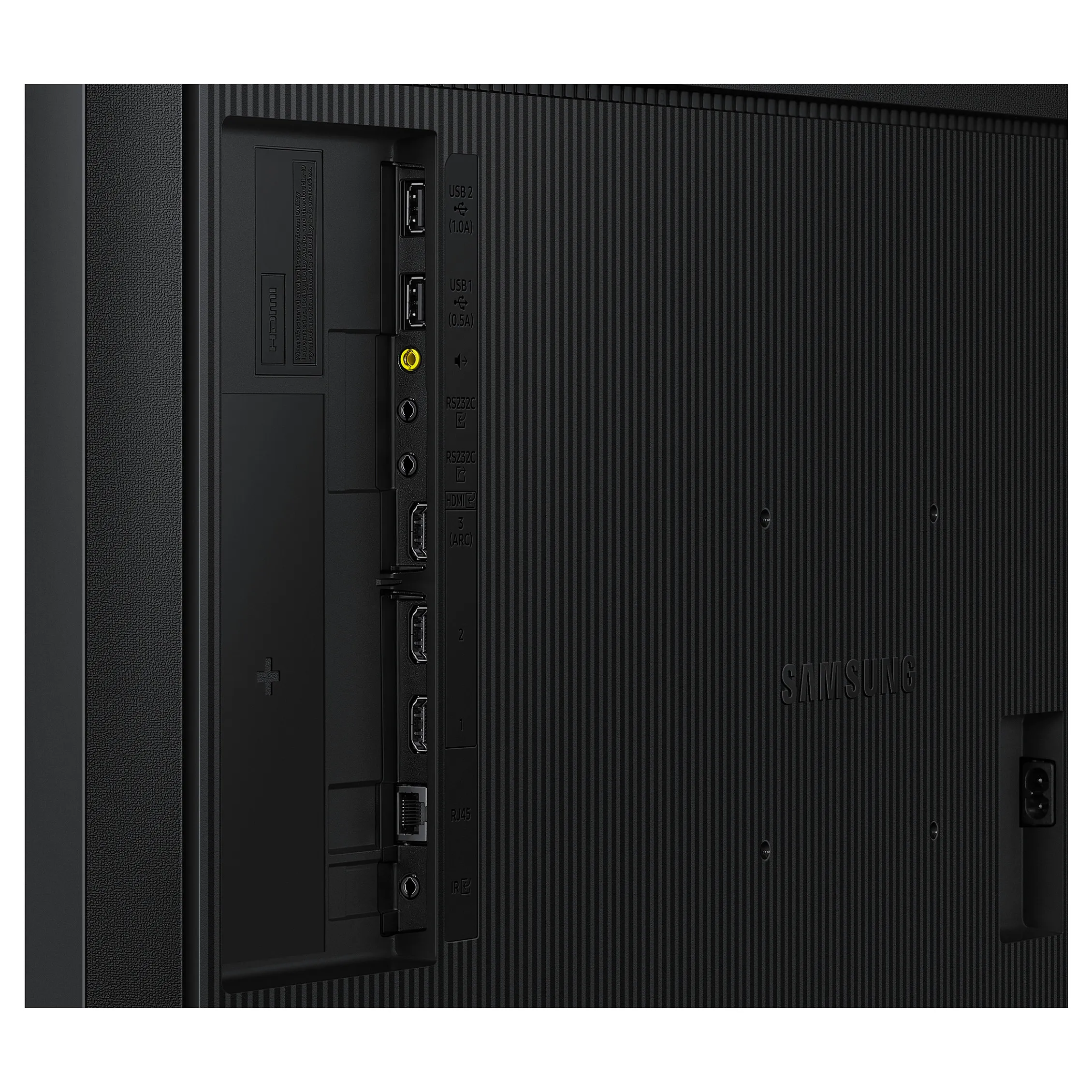

Ports & interfaces
HDMI ports quantity: 3
HDMI version: 1.4
HDMI input ports quantity: 3
Feature: USB port
USB ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel width (bottom): 1.15 cm
Bezel width (side): 1.15 cm
Bezel width (top): 1.15 cm
Bezel colour: Charcoal Black
Mounting type: Wall
Performance
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 55 W
Power consumption (sleep): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen
Operating system version: 7.0
Weight & dimensions
Display width: 727.3 mm
Display depth: 28.5 mm
Display height: 421.9 mm
Display weight: 5.2 kg
Packaging data
Package width: 817 mm
Package depth: 119 mm
Package height: 507 mm
Package weight: 6.9 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: Class B60950-1, 62368-1
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Other features
Feature: Bluetooth
Flash memory: 8000 MB
RS-232 input ports: 1
RS-232 output ports: 1
RJ-45 input ports: 1
Optional features: STN-L3200C
Panel type: IPS
Feature: LED backlight
Display diagonal: 81.3 cm (32″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 400 cd/m²
HD type: Full HD
Response time: 8 ms
Contrast ratio (typical): 1200:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.36375 x 0.36375 mm
Horizontal scan range: 30 – 81 kHz
Vertical scan range: 48 – 75 Hz
Haze rate: 1%
Pixel frequency (max): 148.5 MHz
RGB colour space: NTSC
Ports & interfaces
HDMI ports quantity: 3
HDMI version: 1.4
HDMI input ports quantity: 3
Feature: USB port
USB ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Design
Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Bezel width (bottom): 1.15 cm
Bezel width (side): 1.15 cm
Bezel width (top): 1.15 cm
Bezel colour: Charcoal Black
Mounting type: Wall
Performance
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2
Power
Power consumption (typical): 55 W
Power consumption (sleep): 0.5 W
AC input voltage: 100-240 V
AC input frequency: 50-60 Hz
Computer system
Feature: Computer system
Computer system type: System on Chip (SoC)
Feature: Built-in processor
Operating system installed: Tizen
Operating system version: 7.0
Weight & dimensions
Display width: 727.3 mm
Display depth: 28.5 mm
Display height: 421.9 mm
Display weight: 5.2 kg
Packaging data
Package width: 817 mm
Package depth: 119 mm
Package height: 507 mm
Package weight: 6.9 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 10 – 80%
Certificates
Certification: Class B60950-1, 62368-1
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Technical details
Audio out (mini jack): 1
Other features
Feature: Bluetooth
Flash memory: 8000 MB
RS-232 input ports: 1
RS-232 output ports: 1
RJ-45 input ports: 1
Optional features: STN-L3200C
