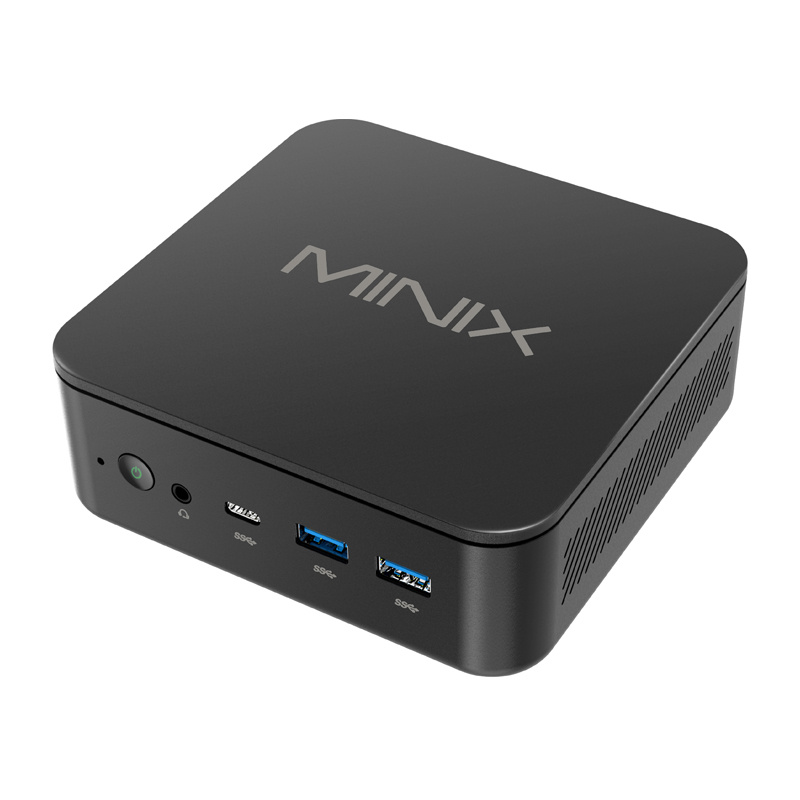

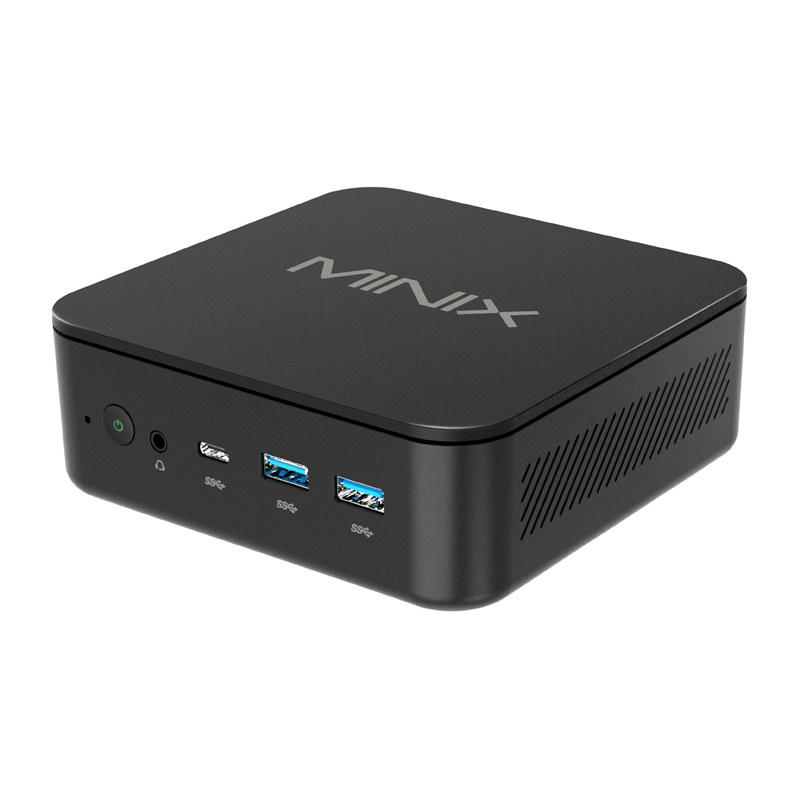

Minix NR660 mini PC ryzen 5 6600h 16+512
MINIX NR660 is a compact desktop PC designed for demanding professionals and home users. Equipped with a six-core AMD Ryzen™ 5 6600H processor with twelve threads and integrated Radeon™ 660M graphics, it provides smooth performance even for intensive multitasking and multimedia processing. It comes with 16GB of DDR5 RAM clocked at 4800 MHz and a fast 512GB NVMe PCIe 3.0 SSD. The device runs Windows 11 Pro and meets CE, FCC, RoHS and PSE certification requirements, making it a good choice for global use.
Ready for expansion – memory and data storage
The MINIX NR660 offers flexible expansion options – two SO-DIMM slots allow for up to 64GB of RAM, and two M.2 SSD slots (PCIe 3.0 and PCIe 4.0) allow for the installation of drives with a total capacity of up to 8TB. This makes the device easily customizable for future needs, whether used for graphics editing, data analysis or daily office work.
Exceptional image quality – support for up to 8K
The Mini PC supports simultaneous display on three monitors with a maximum resolution of 4K at 60 Hz, thanks to HDMI 2.1, DisplayPort 1.4 and USB-C 4.0 ports. When connected via DP 1.4 or USB-C, it is possible to transmit video in 8K at 30 Hz. This configuration makes the device ideal for graphics work, video editing or multimedia applications.
Fast and stable network connectivity
The MINIX NR660 features two 2.5G RJ-45 Ethernet ports, providing high throughput and low latency, ideal for local networks or real-time data transmission. Support for Wi-Fi 6E (2.4GHz, 5GHz and 6GHz bands) and Bluetooth 5.2 further enhances the flexibility of wireless connections, ensuring fast internet access and reliable communication with peripherals.
Thoughtful port layout and modern design
The all-plastic case conceals a rich set of connectors: a total of up to six USB ports (including USB-A 3.2 Gen 2, USB-A 2.0 and USB-C 4.0), HDMI and DP ports, a 3.5mm audio jack, and power and reset buttons. The device weighs just 483 g and has compact dimensions of 130 × 127 × 46.9 mm, making it easy to install anywhere, whether in a home office or commercial application.
Quiet operation and efficient cooling
Thanks to the use of copper tubing, high-performance thermal paste and active fan cooling, the mini PC maintains optimal operating temperatures while keeping noise levels low – a maximum of 32 dB. Thoughtful design ensures effective heat dissipation, which translates into stability and long component life even during intensive use.
Included
- 1x Mini PC Minix NGC NR660
- 1x HDMI cable
- 1x Power cable
- 1x Adapter
- 1x VESA mount
- 1x User manual
| Manufacturer | MINIX |
|---|---|
| Name | NGC PRD |
| Model | NR660 |
| Color | Black |
| Material | Plastic |
| CPU | AMD Ryzen™ 5 6600H (6 cores, 12 threads, 12 MB cache, clocked up to 5.1 GHz) |
| GPU | AMD Radeon™ 660M integrated |
| Memory | 16 GB DDR5 clocked at 4800 MHz |
| Memory slots | 2 × SO-DIMM DDR5 (support up to 64 GB, additional memory not included) |
| SSD | 512 GB M.2 2280 PCIe 3.0 ×4 (pre-installed) |
| Expandable drive | Additional M.2 2280 PCIe 4.0 ×4 slot for a second SSD |
| WI-FI and Bluetooth | WI-FI 6E 2.4Ghz; 5GHz; 6GHz; RZ616 MT7922A22M, BT5.2 |
| Connectivity | RZ616 MT7922A22M – tri-band Wi-Fi 6E (2.4GHz / 5GHz / 6GHz), Bluetooth 5.2 |
| Front button | 1×Power button with white LED light |
| Front audio jack | 1×3.5mm combo jack (audio input/output) |
| Front USB Type-A port | 2×USB-A 3.2 Gen2 |
| Front USB Type-C port | 1×USB-C 4.0 (full functionality, 4K@60Hz, 40 Gbps, 100 W input / 15 W output) |
| Front reset | 1×Reset button |
| Rear RJ45 | 2×RJ-45 Ethernet 2.5G |
| Rear USB Type-A | 1×USB-A 2.0; 1×USB-A 3.2 Gen2 |
| Rear HDMI | 2×HDMI 2.1 TMDS (4K@60Hz) |
| Rear USB Type-C | 1×Thunderbolt 4 (8K@60Hz) (DP, PD, data) |
| Rear DisplayPort | 1×DisplayPort 1.4 (4K@60Hz) |
| Rear DC socket | 1×AC input 100~240V, output 19V 5A (max. 95W), DC connector 2.5/5.5mm (RTC support, EU/US/UK adapters included) |
| Operating system | Windows 11 Pro |
| Supported languages | Multi-language support |
| Certifications | FCC CE UKCA ROHS WEEE PSE |
| WIFI Certification | Model: MT7922A22M; Contains; FCC ID: RAS-MT7922A22M; Includes; IC: 7542A-MT7922A22M; CMIIT ID: 2021AJ12359(M); NCC ID: CCAI21Y10050T2; IMDA Standards: DB02941; ICC ID: R-C-MD6-MT7922A22M; TELEC RF: 020-210086; TELEK TEL: D210041020 |
| Operating temperature | 0-50°C, at a relative humidity of 5-80% RH |
| Storage temperature | -20-70°C |
| Relative humidity | 10-95% RH at 40°C (non-condensing) |
| Device dimensions | 130 × 127 × 46.9 mm |
| Packaging dimensions | 182 × 172 × 112 mm |
| Weight of the device | 483 g |
| Weight with packaging | 1463 g |
