| Packing quantity | 20 dalių |
| Embeeded battery | No |
| WEEE tax | Yes |
| WEEE tax | CL109:6:2017-04-01 |
| Gross weight | 0.804 kg |
| Net weight | 0.454 kg |
| Tare weight (kg) | 0.35 kg |
| Gross depth (mm) | 310 mm |
| Gross width (mm) | 130 mm |
| Gross height (mm) | 48 mm |
| Volume (m3) | 0.0019344 m³ |
| Paper/Pasteboard | 315 g |
| Plastic (No PET) | 35 g |
| Gamintojo prekės modelio pavadinimas | RB5009UG+S+IN |
| Gamintojo prekės serija | Wired Ethernet Router |
| Procesoriaus modelis | 88F7040 |
| Bendroji laikmenos talpa | 1 GB |
| PoE in | 802.3af/at |
| CPU frequency | 350-1400 (auto) MHz |
| Energijos suvartojimas (maks.) | 20 W |
| Darbo temperatūra (T-T) | -40°C to 60°C °C |
| Įtampa | (PoE in input Voltage) 24-57 V |
| SFP+ prievadų kiekis | 1 |
| Ethernet LAN (RJ-45) prievadai | 7 |
| Programinės įrangos tipas | RouterOS (v7 only) |
| USB prievadų kiekis | 1 |

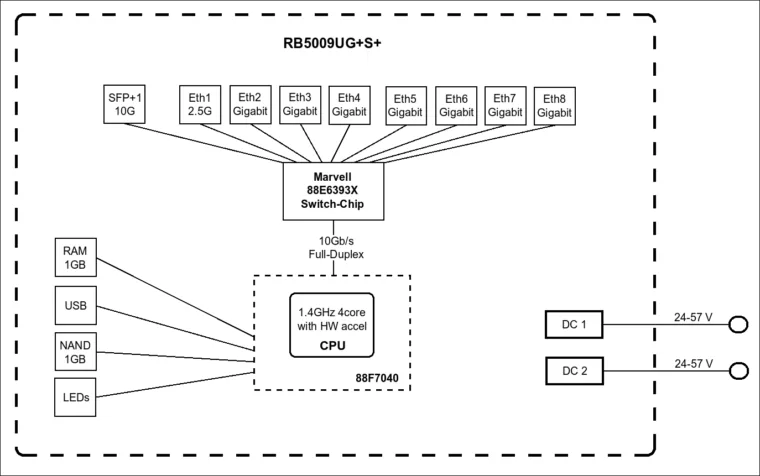

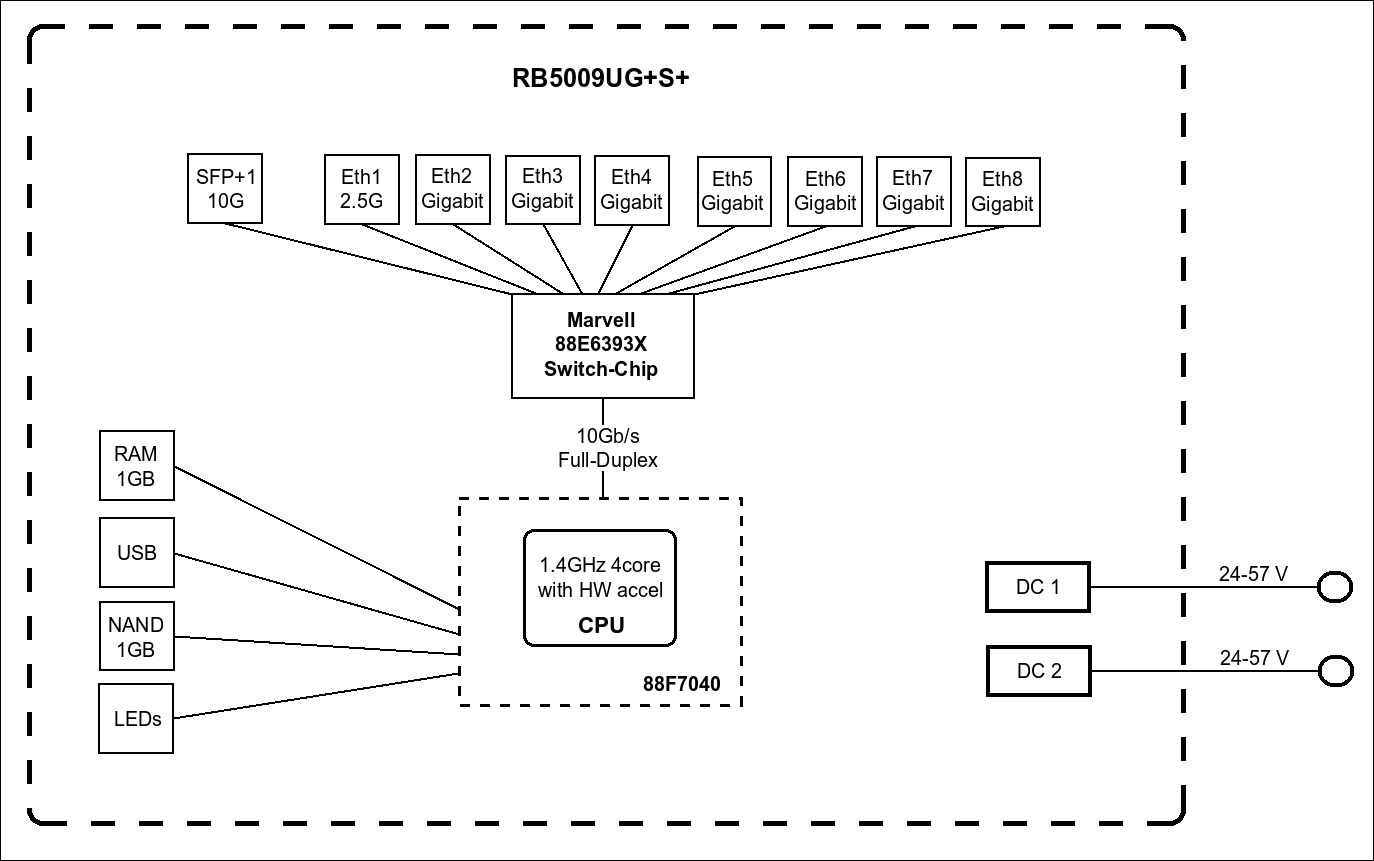

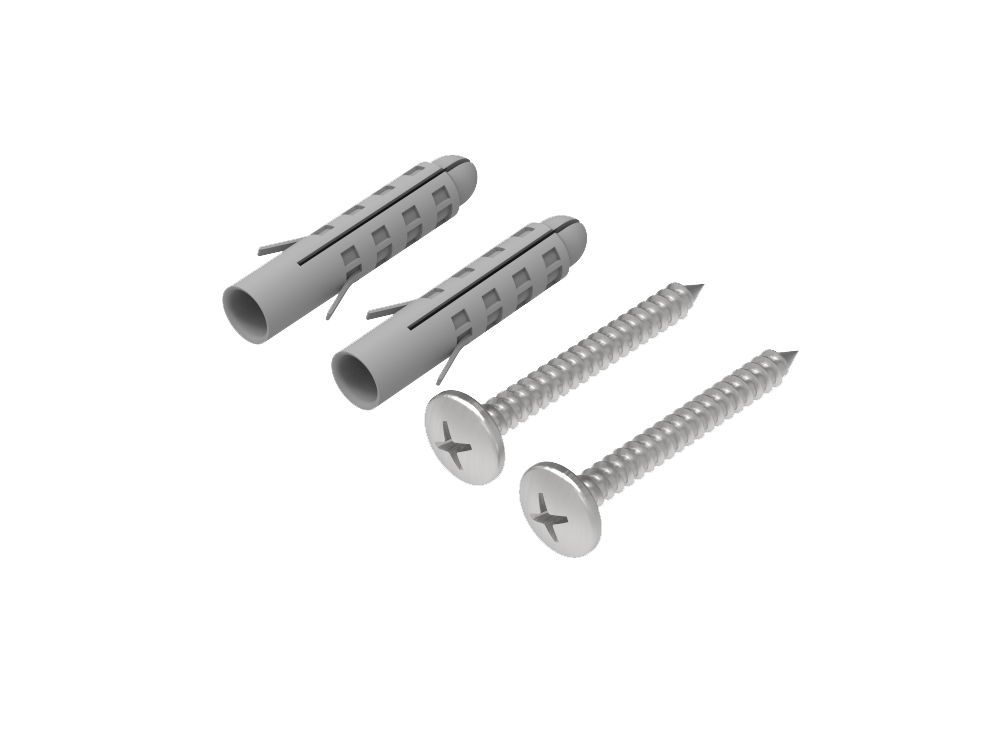

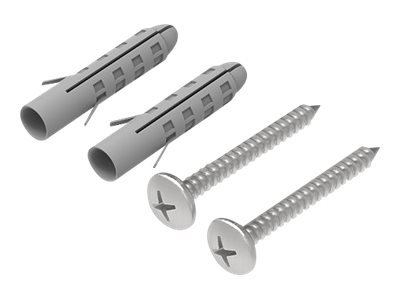

| Kitos savybės | Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity. |
| Atstatymo mygtukas | Yes |
| USB versija | USB 3.0 type A |
| „Ethernet” vietinio tinklo duomenų perdavimo greitis | 10/100/1000 Mbit/ai |
| Wi-Fi juosta | No Wi-Fi |
| Mesh Support | No |
| Mobile Broadband | No mobile broadband |
| MU-MiMO | No |
| Antenų kiekis | No antenna |
| Procesoriaus dažnis | 1400 MHz |
| Procesoriaus branduoliai | 4 |
| Belaidis ryšys | No |
| Warranty | 12 mėn. |
| Sertifikatas | CE, EAC, ROHS |
| Vidinė atmintis | 1000 MB |
| Saugyklos talpa | 1000 MB |
| Atminties tipas | NAND |

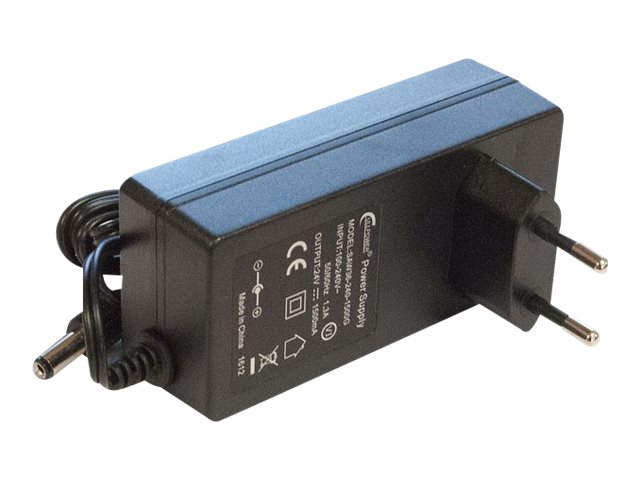

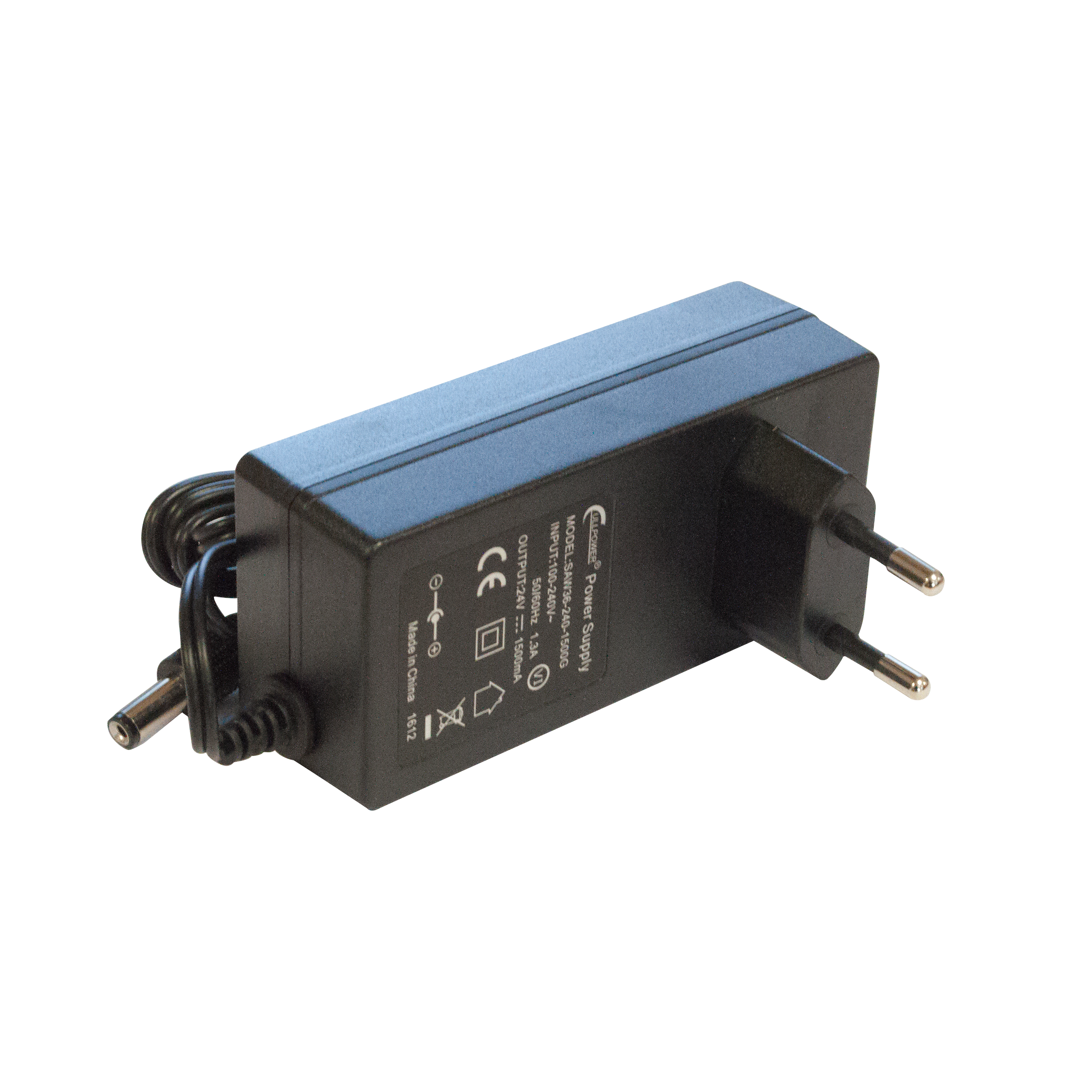

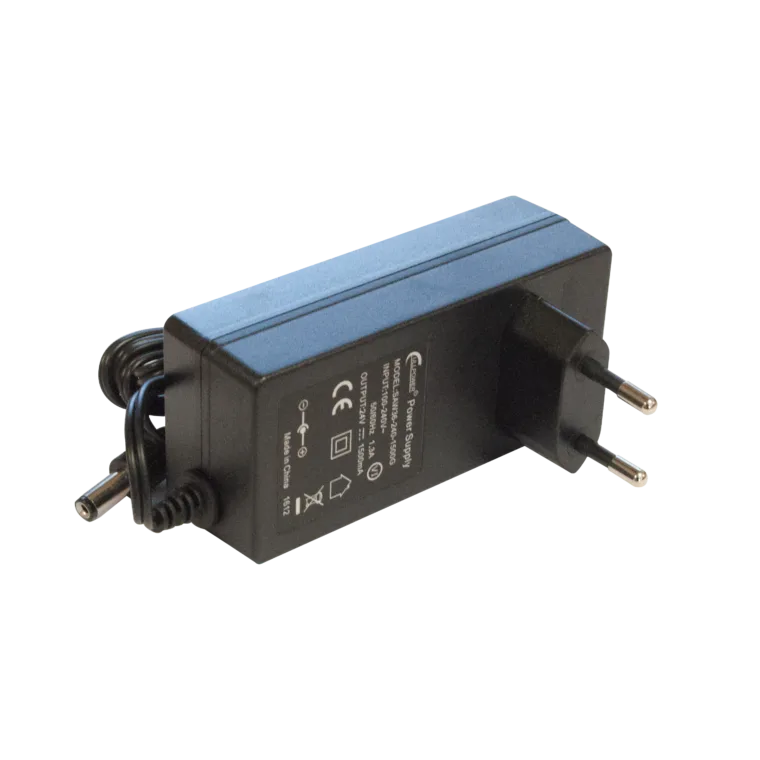

| AC adapteris pridėtas | Yes (24V 1.5A power adapter) |
| Gross depth master carton | 510 mm |
| Gross width master carton | 275 mm |
| Gross height master carton | 340 mm |
| Net weight master carton | 16.08 kg |
| Tare weight master carton | 0.811 kg |
| Palette Qty | 720 dalių |
| Producer | MikroTik |

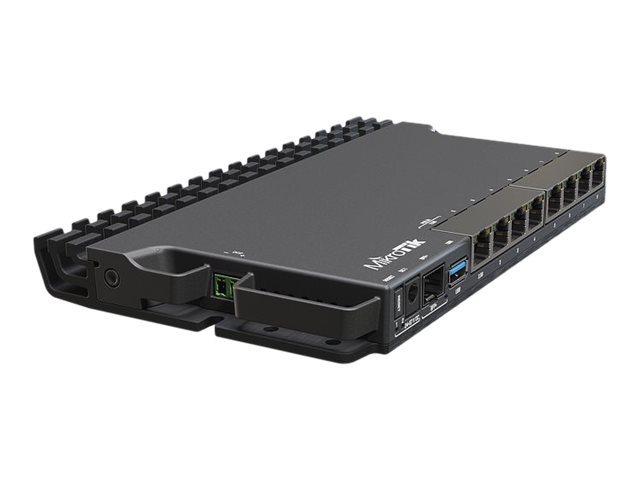

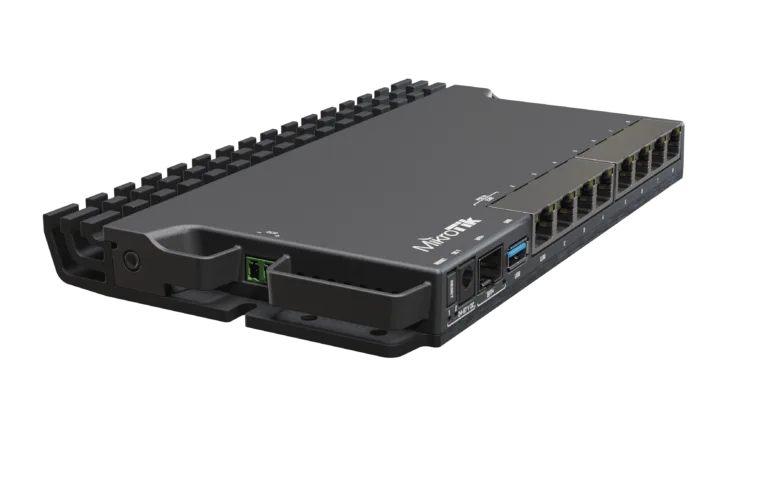

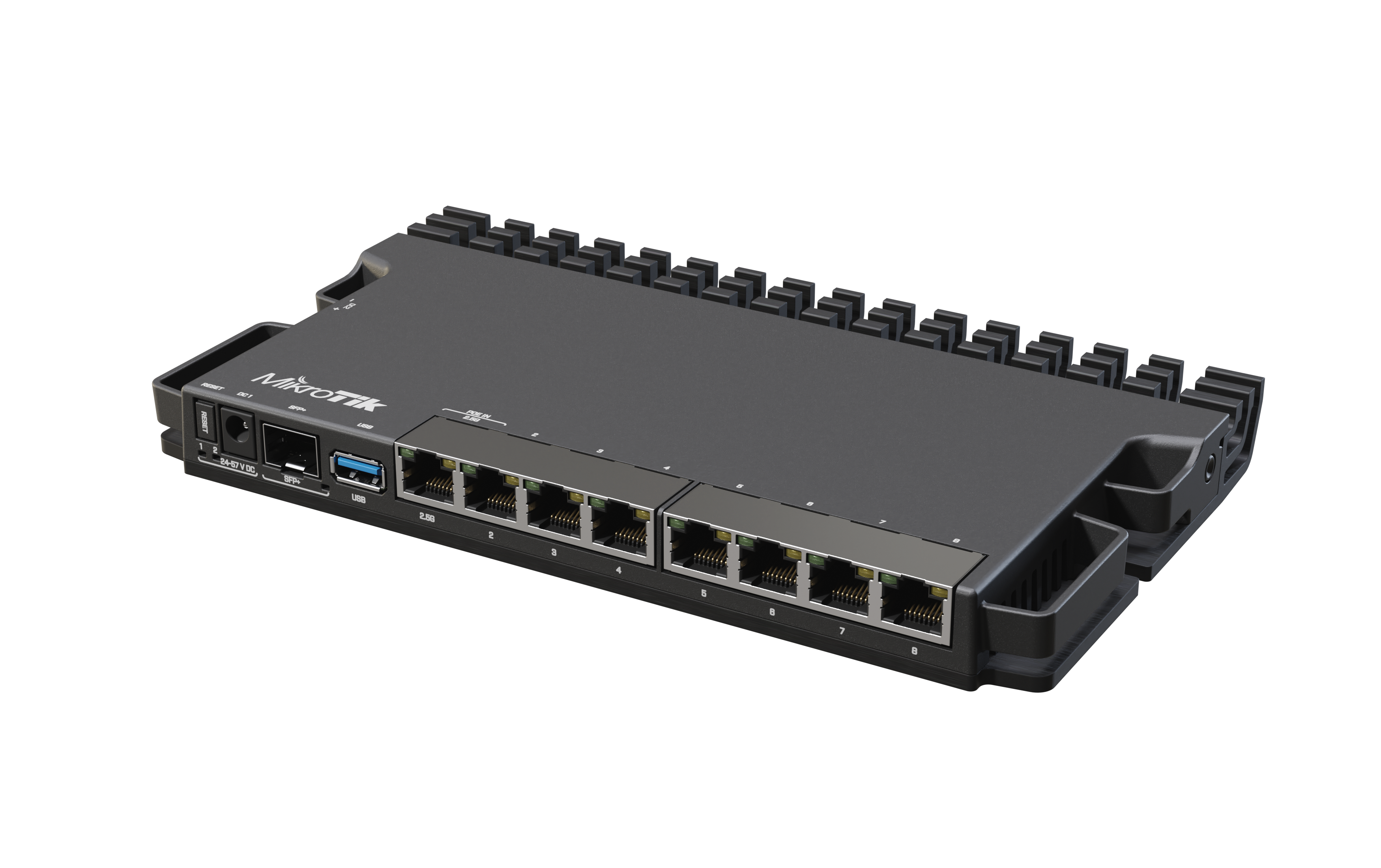

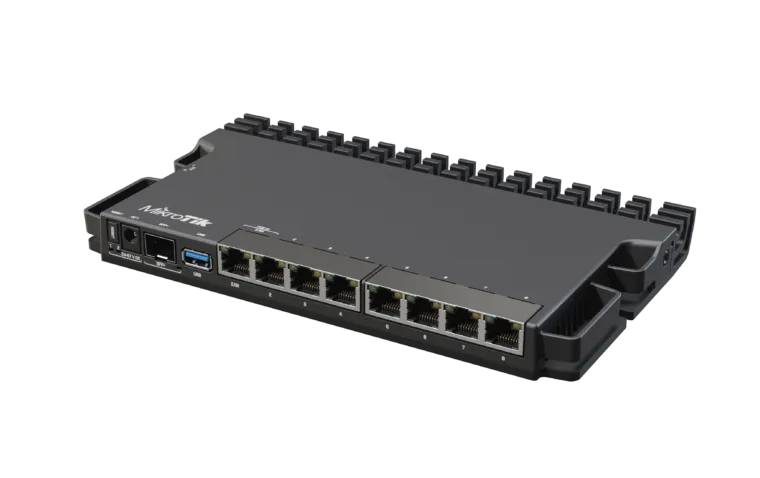

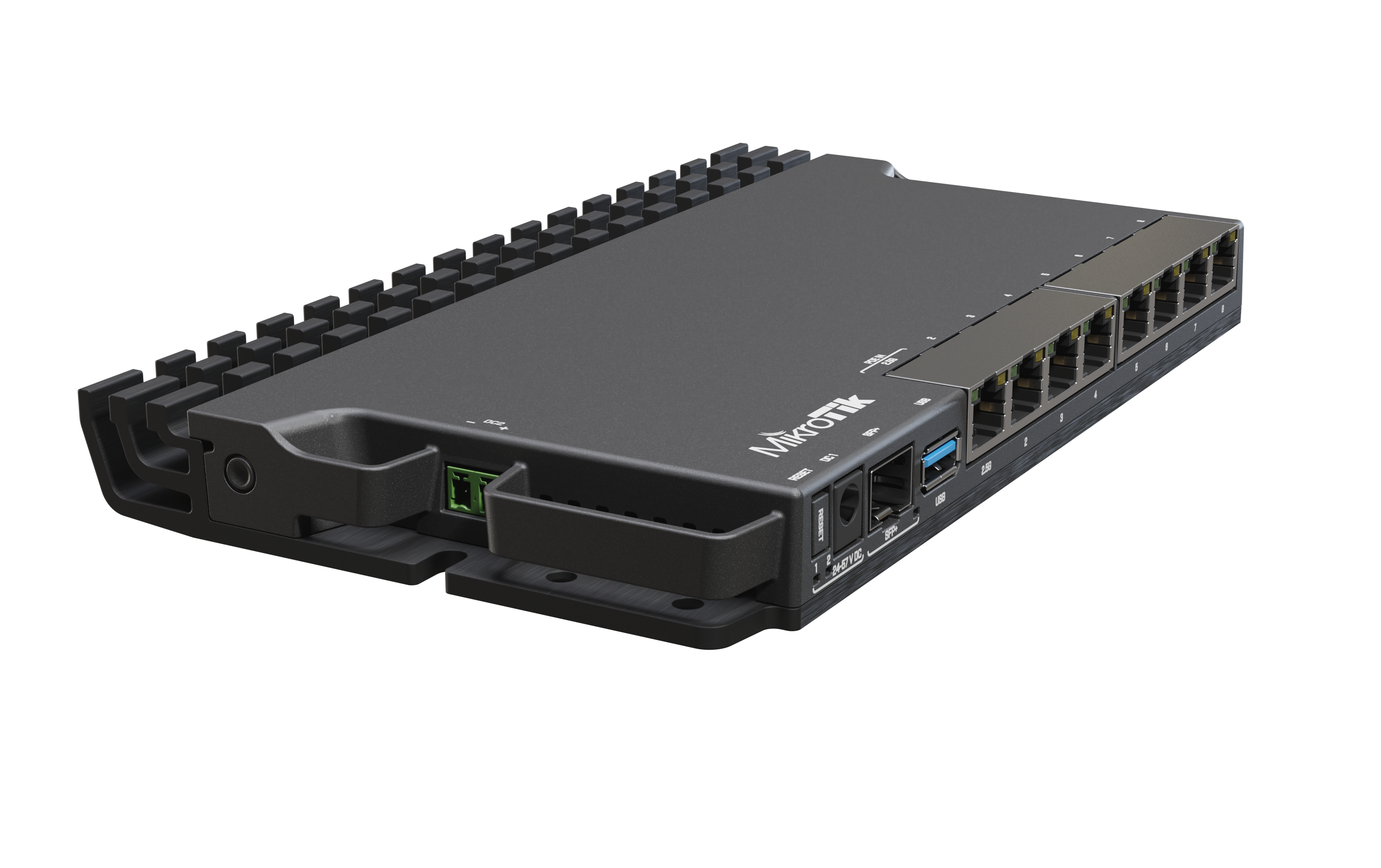

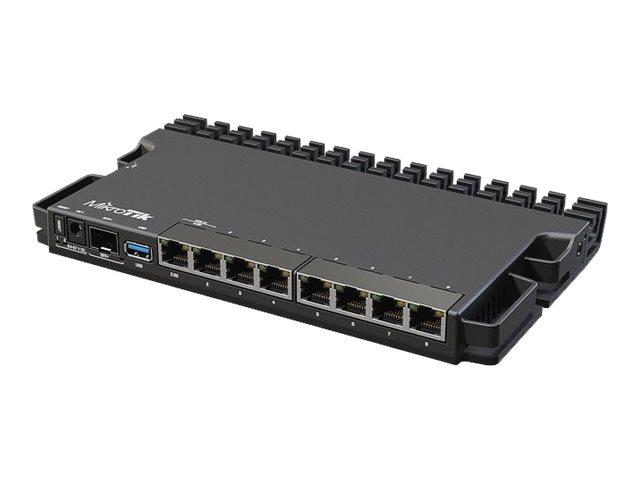

MikroTik Wired Ethernet Router RB5009UG+S+IN, Quad core 1.4 GHz CPU, 1xSFP+, 7xGigabit LAN, 1×2.5G LAN, 1xUSB, Can be powered in 3 different ways, CPU temperature monitor, Mounts FOUR of these Routers in a Single 1U Rackmount Space, RouterOS L5 | Wired Ethernet Router | RB5009UG+S+IN | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 7 | Mesh Support No | MU-MiMO No | No mobile broadband | 1 | 12 month(s)
RB5009UG+S+IN
4752224007148
175,30 €
Šią prekę pristatome per 3-4 darbo dienas.
Aprašymas
Papildoma informacija
| Svoris | 0,804 kg |
|---|---|
| Išmatavimai | 310 × 130 × 48 mm |
