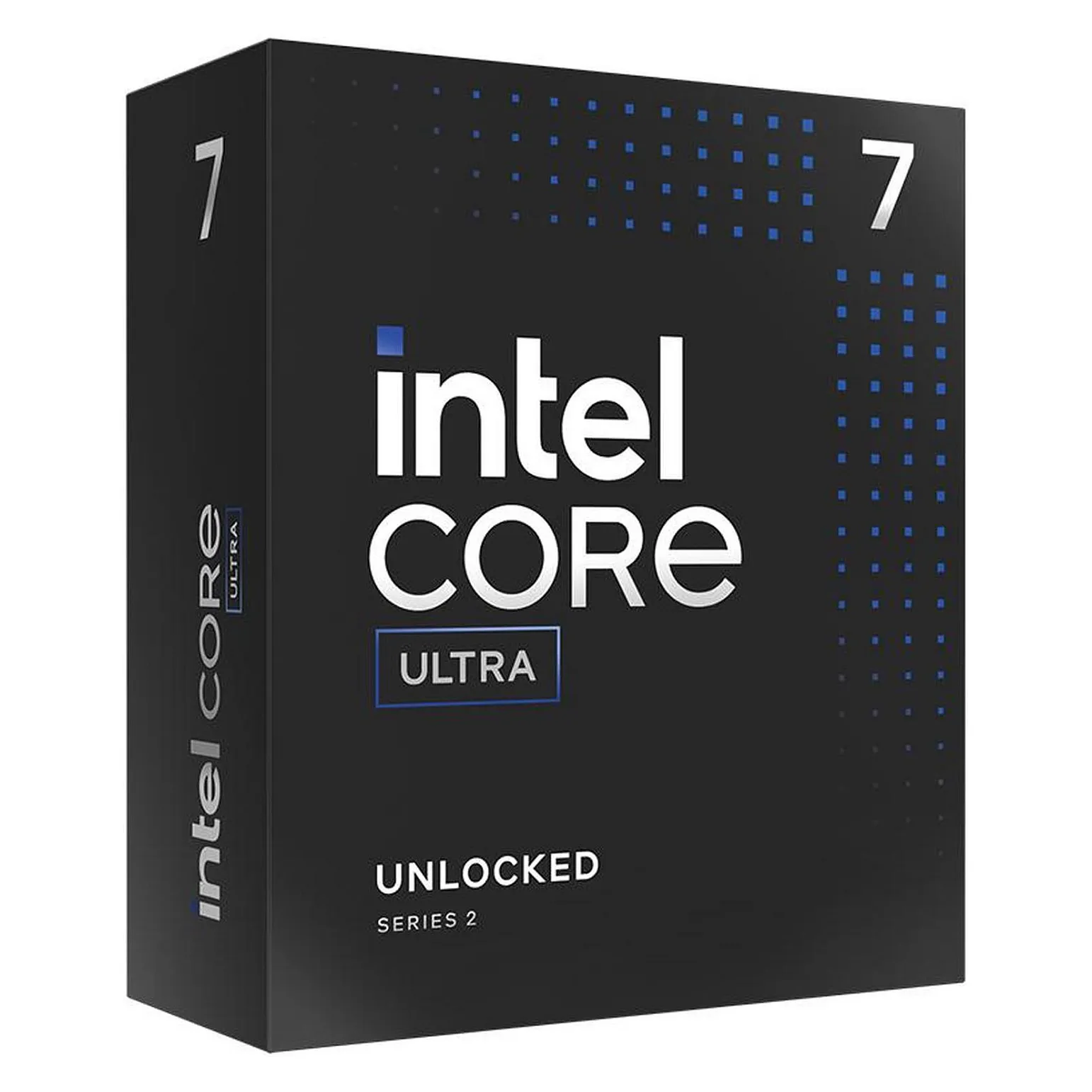

Intel Core Ultra 7 265K. Processor family: Intel Core Ultra 7, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 33 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel® Graphics, On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slots version: 4.0, 5.0
Processor
Processor manufacturer: Intel
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265K
Processor family: Intel Core Ultra 7
Processor cores: 20
Processor socket: LGA 1851 (Socket V1)
Processor threads: 20
Processor operating modes: 64-bit
Performance cores: 8
Efficient cores: 12
Processor boost frequency: 5.5 GHz
Performance-core boost frequency: 5.4 GHz
Performance-core base frequency: 3.9 GHz
Efficient-core boost frequency: 4.6 GHz
Efficient-core base frequency: 3.3 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Package type: Box
Cooler included: No
Processor base power: 125 W
Maximum turbo power: 250 W
AI software frameworks supported by CPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Stepping: B0
Maximum number of DMI lanes: 8
Processor codename: Arrow Lake
Processor ARK ID: 241063
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 33 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs
Memory
Maximum internal memory supported by processor: 192 GB
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 6400 MHz
Memory channels: Dual-channel
ECC: Yes
Graphics
On-board graphics card: Yes
Discrete graphics card: No
On-board graphics card model: Intel® Graphics
On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
On-board graphics card base frequency: 300 MHz
On-board graphics card dynamic frequency (max): 2000 MHz
Number of displays supported (on-board graphics): 4
On-board graphics card DirectX version: 12.0
On-board graphics card OpenGL version: 4.5
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
On-board graphics card ID: 0x7D67
Discrete graphics card model: Not available
Xe-cores: 4
Features
Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market segment: Desktop
Use conditions: Workstation, PC/Client/Tablet
Maximum number of PCI Express lanes: 24
PCI Express slots version: 4.0, 5.0
Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
Scalability: 1S
Embedded options available: No
Thermal solution specification: PCG 2020A
Direct Media Interface (DMI) Revision: 4.0
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): 740.17B1
Processor special features
Intel® Turbo Boost Technology: 2.0
Intel® Quick Sync Video Technology: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Trusted Execution Technology: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0 frequency: 5.5 GHz
Intel® Thunderbolt 4: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Thread Director: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Secure Key: Yes
Intel® Active Management Technology (Intel® AMT): Yes
Intel® OS Guard: Yes
Intel 64: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel® Boot Guard: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Volume Management Device (VMD): Yes
Mode-based Execute Control (MBE): Yes
Intel® Standard Manageability (ISM): Yes
Intel® One-Click Recovery: Yes
Intel® Stable IT Platform Program (SIPP): Yes
Intel® Remote Platform Erase (RPE): Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
Intel vPro® Enterprise Platform Eligibility: Yes
Intel® Threat Detection Technology (TDT): Yes
Intel® Hardware Shield Eligibility: Yes
Intel® Total Memory Encryption – Multi Key: Yes
Operational conditions
Maximum operating temperature: 105 °C
Technical details
OpenCL version: 3.0
Launch date: Q4’24
Status: Launched
Memory speed (max): 6400 MHz
Logistics data
Harmonized System (HS) code: 8542310050
Other features
L2 cache: 36864 KB
Maximum internal memory: 192 GB
Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
Processor manufacturer: Intel
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265K
Processor family: Intel Core Ultra 7
Processor cores: 20
Processor socket: LGA 1851 (Socket V1)
Processor threads: 20
Processor operating modes: 64-bit
Performance cores: 8
Efficient cores: 12
Processor boost frequency: 5.5 GHz
Performance-core boost frequency: 5.4 GHz
Performance-core base frequency: 3.9 GHz
Efficient-core boost frequency: 4.6 GHz
Efficient-core base frequency: 3.3 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Package type: Box
Cooler included: No
Processor base power: 125 W
Maximum turbo power: 250 W
AI software frameworks supported by CPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Stepping: B0
Maximum number of DMI lanes: 8
Processor codename: Arrow Lake
Processor ARK ID: 241063
Neural processor unit (NPU)
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 33 TOPs
NPU performance up to: 13 TOPs
GPU performance up to: 8 TOPs
Memory
Maximum internal memory supported by processor: 192 GB
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 6400 MHz
Memory channels: Dual-channel
ECC: Yes
Graphics
On-board graphics card: Yes
Discrete graphics card: No
On-board graphics card model: Intel® Graphics
On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1
On-board graphics card base frequency: 300 MHz
On-board graphics card dynamic frequency (max): 2000 MHz
Number of displays supported (on-board graphics): 4
On-board graphics card DirectX version: 12.0
On-board graphics card OpenGL version: 4.5
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 60 Hz
On-board graphics card ID: 0x7D67
Discrete graphics card model: Not available
Xe-cores: 4
Features
Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market segment: Desktop
Use conditions: Workstation, PC/Client/Tablet
Maximum number of PCI Express lanes: 24
PCI Express slots version: 4.0, 5.0
Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
Scalability: 1S
Embedded options available: No
Thermal solution specification: PCG 2020A
Direct Media Interface (DMI) Revision: 4.0
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): 740.17B1
Processor special features
Intel® Turbo Boost Technology: 2.0
Intel® Quick Sync Video Technology: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Trusted Execution Technology: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0 frequency: 5.5 GHz
Intel® Thunderbolt 4: Yes
Intel® Control-flow Enforcement Technology (CET): Yes
Intel® Thread Director: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Secure Key: Yes
Intel® Active Management Technology (Intel® AMT): Yes
Intel® OS Guard: Yes
Intel 64: Yes
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel Turbo Boost Max Technology 3.0: Yes
Intel® Boot Guard: Yes
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
Intel® Volume Management Device (VMD): Yes
Mode-based Execute Control (MBE): Yes
Intel® Standard Manageability (ISM): Yes
Intel® One-Click Recovery: Yes
Intel® Stable IT Platform Program (SIPP): Yes
Intel® Remote Platform Erase (RPE): Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
Intel vPro® Enterprise Platform Eligibility: Yes
Intel® Threat Detection Technology (TDT): Yes
Intel® Hardware Shield Eligibility: Yes
Intel® Total Memory Encryption – Multi Key: Yes
Operational conditions
Maximum operating temperature: 105 °C
Technical details
OpenCL version: 3.0
Launch date: Q4’24
Status: Launched
Memory speed (max): 6400 MHz
Logistics data
Harmonized System (HS) code: 8542310050
Other features
L2 cache: 36864 KB
Maximum internal memory: 192 GB
Graphics output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
