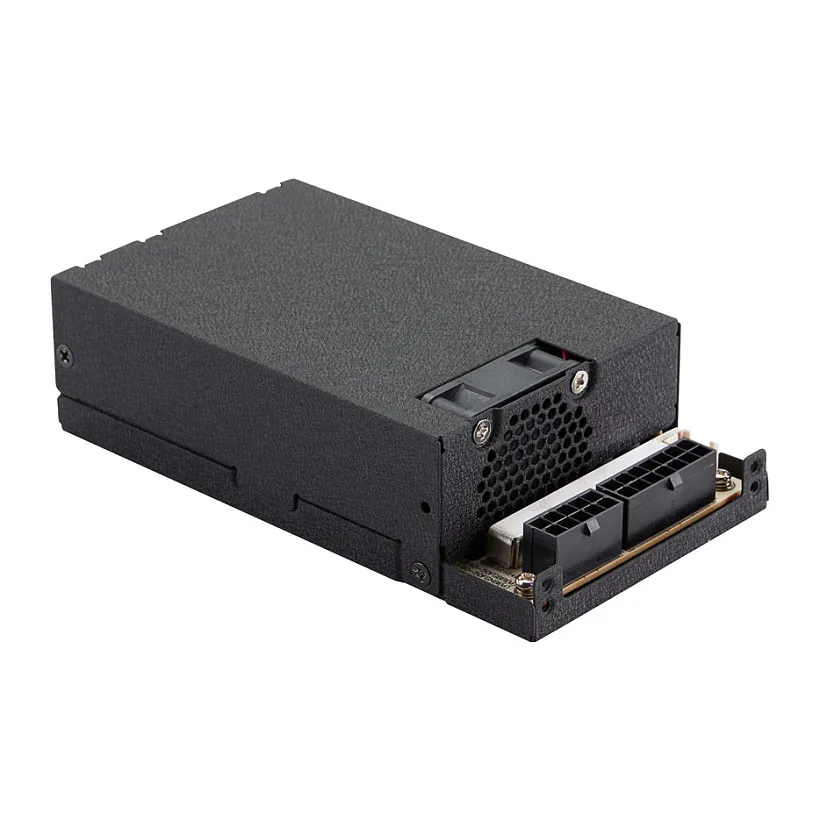

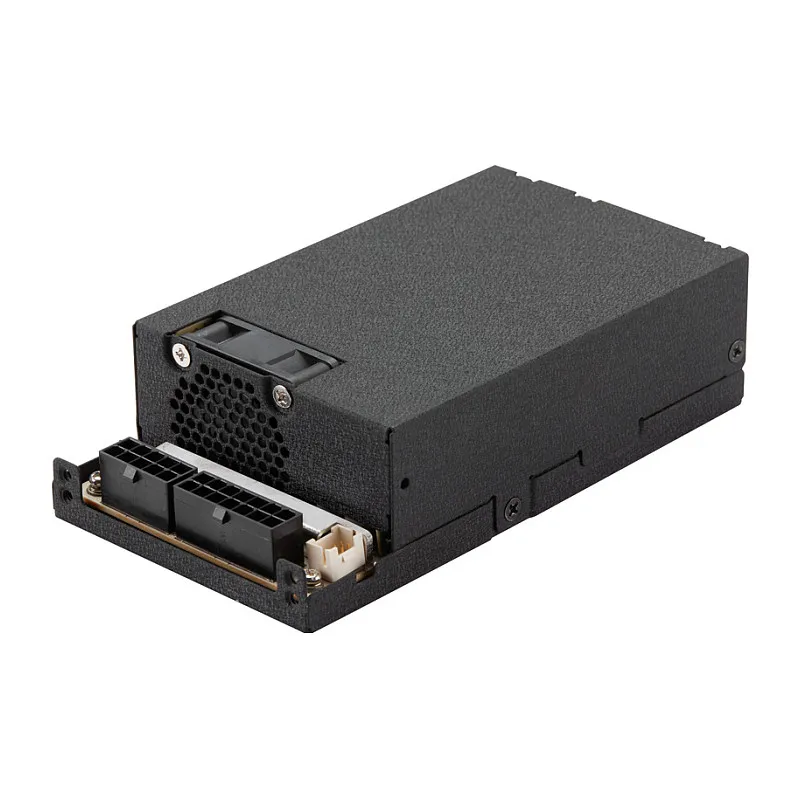

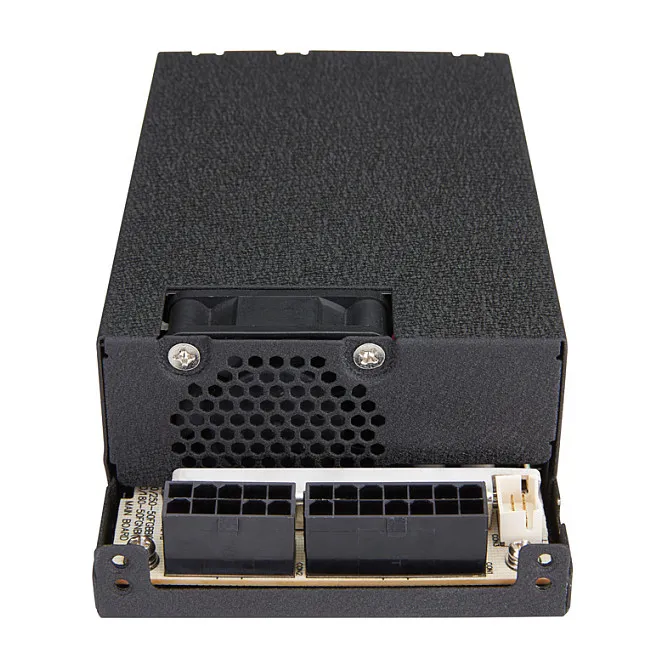

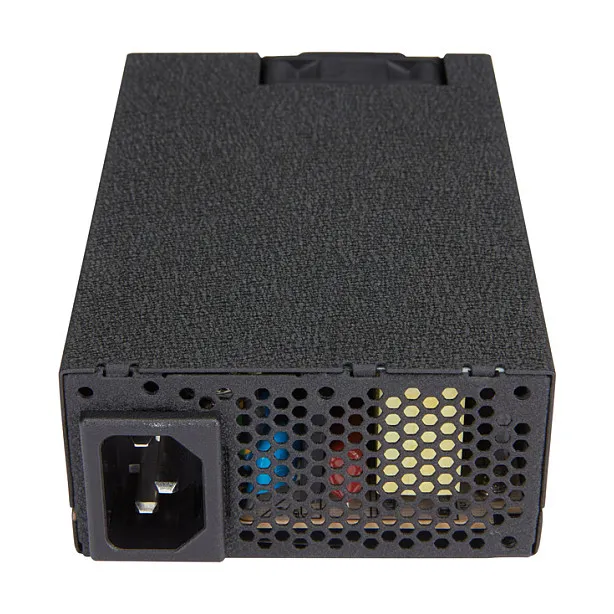

FSP FlexGURU 300W Power supply unit FLEX ATX ATX2.52 / Flex ATX1.23 Black. Total power: 300 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: Server, Power supply unit (PSU) form factor: Flex ATX, Bearing technology: Ball bearing. Product colour: Black, Fan diameter: 4 cm, Number of fans: 1 fan(s). Cables included: CPU, Peripheral (Molex), SATA

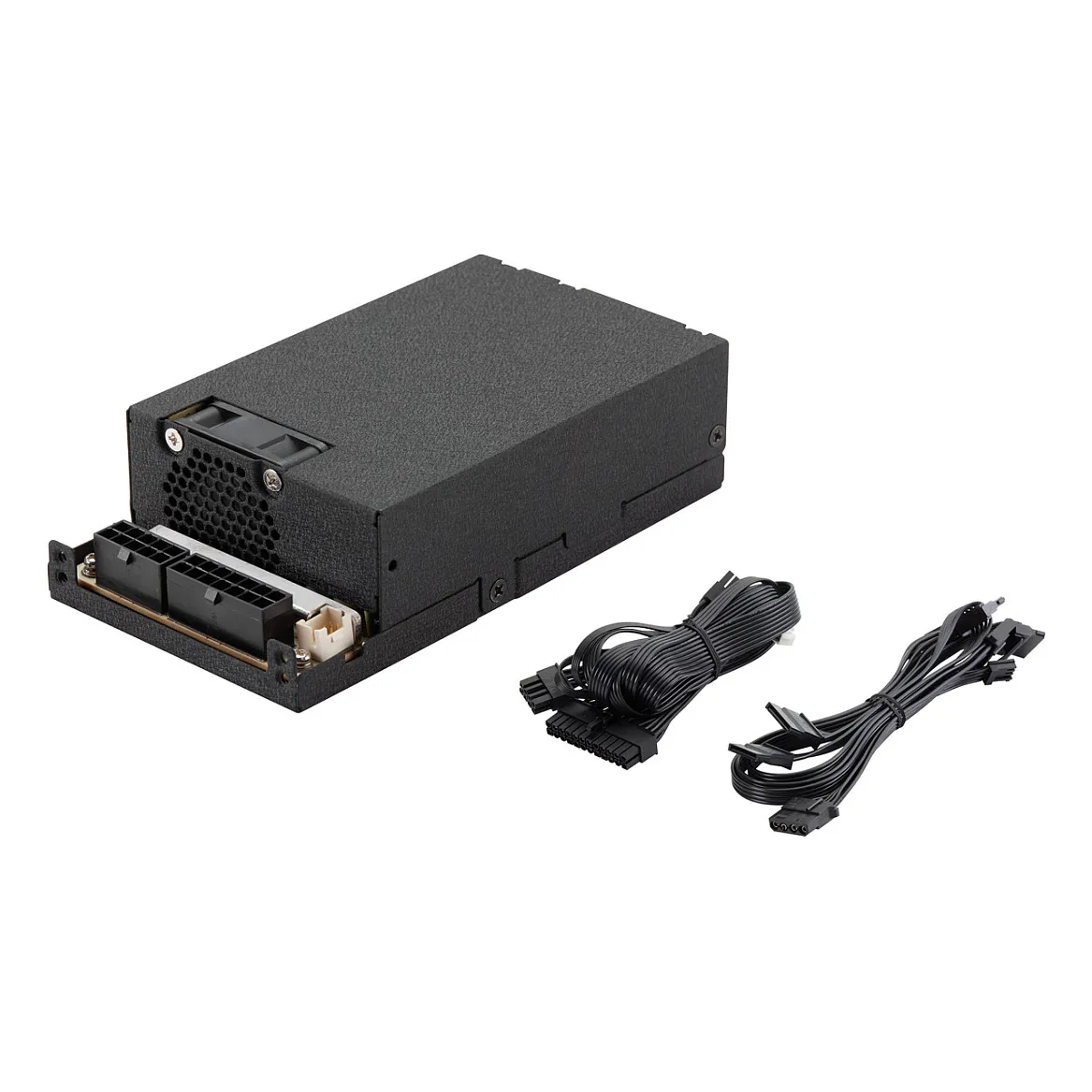

Fully modular design with all black ribbon cables simplifies installation, which allows you to use only the cables you need, for a much neater build.
High Power Density
FlexGuru series featured with high power density, 20% higher than any Flex PSU in the same wattage and frame.
Firm Installation with Beetle Technology
FSP pioneered the development of the Beetle technology in FLEX-ATX PSU, and we applied it on the FlexGuru series. The new technology strengthens the fixation adequacy by 25% which makes the PSU fit in most of the Flex-ATX chassis in the market.
Excellent Thermal Performance
Unlike general FLEX PSUs, FlexGuru series is designed with inner 40mm fan, noise cancellation and achieving maximum cooling at all times.
90% Efficiency Conversion
The efficiency of your power supply directly affects your system’s performance. FlexGuru 300W has a guaranteed typical efficiency of 90%, offer the high conversion power to boost your system.
Keep in Compliance IEC 62368
FSP Group brings you the latest technologies in renewable energy, they provide a full range of additional safety features to keep up with the latest regulations. FSP has upgraded the majority of their power supplies to the latest UL# 62368 standard.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.
Japanese Electrolytic Capacitors
Using Japanese electrolytic capacitors, FlexGuru series offers a stable output and long-term reliability you need.
Total power: 300 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Input current: 6-3 A
Power Factor Correction (PFC) type: Active
Combined power (+3.3V): 70 W
Combined power (+5V): 70 W
Max output current (+3.3V): 12 A
Max output current (+12V): 25 A
Max output current (+5V): 14 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Efficiency: 90%
Power protection features: Over current, Over power, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 4
Peripheral (Molex) power connectors (4-pin): 2
CPU power connector (4+4 pin): Yes
ATX power connector (20+4 pin): Yes
Floppy drive power connector: 1
Floppy disk drive connector: Yes
Cabling type: Fully-Modular
Performance
Purpose: Server
Power supply unit (PSU) form factor: Flex ATX
Bearing technology: Ball bearing
Design
Product colour: Black
Fan diameter: 4 cm
Number of fans: 1 fan(s)
Packaging content
Cables included: CPU, Peripheral (Molex), SATA
Weight & dimensions
Width: 40.5 mm
Depth: 150 mm
Height: 81.5 mm
Logistics data
Harmonized System (HS) code: 84733020
